SERIE HLB-DE
- 125-250 mm
- 250-500 kg
Which castors do you need?

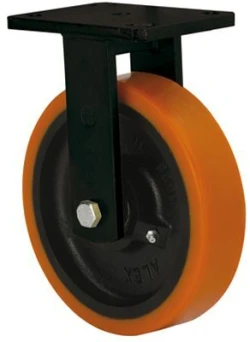

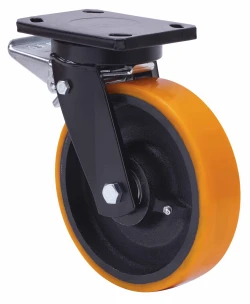

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 1.900 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery in the construction sector and mobile cranes.
Mainly used in the aeronautic sector, railway and automobile factories.
HU: high absorption to impacts. Unfavourable flooring surface conditions. Rough surfaces, broken, with metallic shavings, oil strains, glasses, grease and gravel.
HU SERIES-HLB
Code | Bearing | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
2-1751 | 100 | 350 | 40 | 150x110 | 105x80 | 10 | 160 | 90 | ||
2-1752 | 125 | 400 | 40 | 150x110 | 105x80 | 10 | 183 | 106 | ||
2-1753 | 150 | 800 | 50 | 150x110 | 105x80 | 10 | 200 | 121 | ||
2-1754 | 200 | 1.100 | 50 | 150x110 | 105x80 | 10 | 249 | 155 | ||
2-2294 | 250 | 1.100 | 50 | 150x110 | 105x80 | 10 | 315 | 197 | ||
2-1755 | 250 | 1.250 | 50 | 180x170 | 150x135 | 16 | 315 | 197 | ||
2-3431 | 250 | 1.500 | 75 | 180x170 | 150x135 | 16 | 315 | 197 | ||
4-1230 | 300 | 1.270 | 50 | 180x170 | 150x135 | 16 | 360 | 230 | ||
2-3432 | 300 | 1.900 | 75 | 180x170 | 150x135 | 16 | 360 | 230 |
HU SERIES-HLB
Code | Bearing | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
2-1756 | 100 | 350 | 40 | 150x110 | 105x80 | 10 | 160 | -- | ||
2-1757 | 125 | 400 | 40 | 150x110 | 105x80 | 10 | 183 | -- | ||
2-1758 | 150 | 800 | 50 | 150x110 | 105x80 | 10 | 200 | -- | ||
2-1759 | 200 | 1.100 | 50 | 150x110 | 105x80 | 10 | 249 | -- | ||
2-2295 | 250 | 1.100 | 50 | 150x110 | 105x80 | 10 | 315 | -- | ||
2-1760 | 250 | 1.250 | 50 | 180x170 | 150x135 | 16 | 315 | -- | ||
2-3433 | 250 | 1.500 | 75 | 180x170 | 150x135 | 16 | 315 | -- | ||
4-1231 | 300 | 1.270 | 50 | 180x170 | 150x135 | 16 | 360 | -- | ||
2-3434 | 300 | 1.900 | 75 | 180x170 | 150x135 | 16 | 360 | -- |
HU SERIES-HLB
Code | Bearing | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
2-1761 | 150 | 800 | 50 | 150x110 | 105x80 | 10 | 200 | 121 | ||
2-1762 | 200 | 1.100 | 50 | 150x110 | 105x80 | 10 | 249 | 155 | ||
2-2296 | 250 | 1.100 | 50 | 150x110 | 105x80 | 10 | 315 | 197 | ||
2-1763 | 250 | 1.250 | 50 | 180x170 | 150x135 | 16 | 315 | 197 | ||
2-3742 | 250 | 1.500 | 75 | 180x170 | 150x135 | 16 | 315 | 197 | ||
2-1538 | 300 | 1.270 | 50 | 180x170 | 150x135 | 16 | 360 | 230 | ||
2-3743 | 300 | 1.900 | 75 | 180x170 | 150x135 | 16 | 360 | 230 |
HU SERIES-HLB
Code | Bearing | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
2-3367 | 100 | 350 | 40 | 150x110 | 105x80 | 10 | 160 | 90 | ||
2-3368 | 125 | 400 | 40 | 150x110 | 105x80 | 10 | 183 | 106 | ||
2-3369 | 150 | 800 | 50 | 150x110 | 105x80 | 10 | 200 | 121 | ||
2-3370 | 200 | 1.100 | 50 | 150x110 | 105x80 | 10 | 249 | 155 | ||
2-3371 | 250 | 1.100 | 50 | 150x110 | 105x80 | 10 | 315 | 197 | ||
2-3372 | 250 | 1.250 | 50 | 180x170 | 150x135 | 16 | 315 | 197 | ||
2-3546 | 250 | 1.500 | 75 | 180x170 | 150x135 | 16 | 315 | 197 | ||
2-3373 | 300 | 1.270 | 57 | 180x170 | 150x135 | 16 | 360 | 230 | ||
2-3547 | 300 | 1.900 | 75 | 180x170 | 150x135 | 16 | 360 | 230 |
