Description

Our range of high-loads KV castors is recommended for industrial sectors.

It is used in: outdoor logistics transport tools, carbody factories, internal logistics, mobile platforms, transport tools, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, equipment for the aeronautic sector, equipment for the automobile factories, materials handling in factories and petrochemical factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

Characteristics

Fabricated castor made of cast iron up to 10 mm with a forged kingpin.Painted black.Combination of precision thrust bearing and tapered roller bearing in the swivel head.Totally sealed swivel head with grease nipple on the swivel head and wheel.Manufactured to European standard EN 12532/12533.

Castors SERIE KV

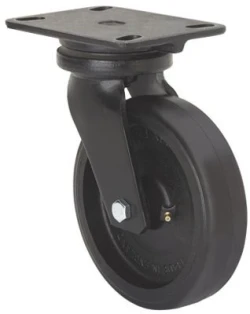

SERIE KV-HG
Diametro 150-300 mm
Carga 400-750 kg
SERIE KV-PO
Diametro 150-200 mm
Carga 450-600 kg
SERIE KV-HU
Diametro 150-300 mm
Carga 800-1.270 kg
SERIE KV-FT
Diametro 150-250 mm
Carga 900-1.250 kg

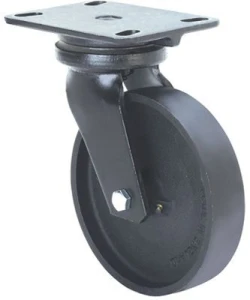

SERIE KV-TA
Diametro 150-250 mm
Carga 1.175-1.350 kg
