SERIE ZVRI-INOX FT

Categories

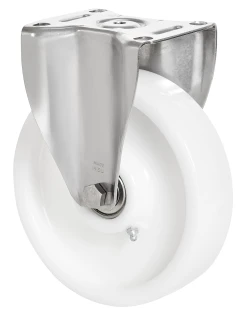

Reinforced nylon castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 1.000 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, bakery machines, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

FT: castors especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

See comparative

ZVRI SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0606 150 900 45 Bearing: Plain 132x110 105x80 12 195 137
New
2-0609 150 900 45 Bearing: Stainless Steel Balls 132x110 105x80 12 195 137
New
2-0612 200 1000 50 Bearing: Plain 132x110 105x80 12 242 161
New
2-0615 200 1000 50 Bearing: Stainless Steel Balls 132x110 105x80 12 242 161
New

ZVRI SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0607 150 900 45 Bearing: Plain 134x114 105x80 12 195 --
New
2-0610 150 900 45 Bearing: Stainless Steel Balls 134x114 105x80 12 195 --
New
2-0613 200 1000 50 Bearing: Plain 134x114 105x80 12 242 --
New
2-0616 200 1000 50 Bearing: Stainless Steel Balls 134x114 105x80 12 242 --
New

ZVRI SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-0608 150 900 45 Bearing: Plain 132x110 105x80 12 195 137
New
2-0611 150 900 45 Bearing: Stainless Steel Balls 132x110 105x80 12 195 137
New
2-0614 200 1000 50 Bearing: Plain 132x110 105x80 12 242 161
New
2-0617 200 1000 50 Bearing: Stainless Steel Balls 132x110 105x80 12 242 161
New
