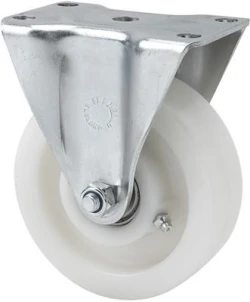

SERIE 61-FT

Categories

Reinforced nylon castors, especially indicated to support high-loads up to 650 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, waste extraction containers, tranport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabeinetmaker's, metalworks, agricultural farms, elevating tables, meat industry and containers.

Mainly used in the aeronautic sector, railway, automobile industries, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

FT: castors especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

See comparative

61 SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0096 50 50 20 Bearing: Plain 67x48 54x24 6 64 42
4-0097 60 125 23 Bearing: Plain 95x70 75x45 8 84 56
4-0098 80 220 36 Bearing: Plain 105x80 86/80x60 8 97 62
4-0099 100 340 36 Bearing: Plain 128x102 105x80/100x76 10 125 76
4-0100 100 340 36 Bearing: Ball 128x102 105x80/100x76 10 125 76
4-0101 125 475 42 Bearing: Plain 162x133 140x105/120x95 10 156 98
4-0102 125 475 42 Bearing: Ball 162x133 140x105/120x95 10 156 98
4-0103 150 650 45 Bearing: Plain 162x133 140x105/120x95 10 181 117
4-0104 150 650 45 Bearing: Ball 162x133 140x105/120x95 10 181 117

61 SERIES-FT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0109 50 50 20 Bearing: Plain 67x46 54x24 6 64 --
4-0110 60 125 23 Bearing: Plain 112x58 89x27 8 84 --
4-0112 100 340 36 Bearing: Plain 121x80 100x48 10 125 --
4-0113 100 340 36 Bearing: Ball 121x80 100x48 10 125 --
4-0114 125 475 42 Bearing: Plain 121x80 100x48 10 156 --
4-0115 125 475 42 Bearing: Ball 121x80 100x48 10 156 --
4-0116 150 650 45 Bearing: Plain 155x107 133x67 10 181 --
4-0117 150 650 45 Bearing: Ball 155x107 133x67 10 181 --

Other castors SERIE 61

SERIE 61-HG
SERIE 61-HG
Diametro 100-150 mm
Carga 180-400 kg
SERIE 61-PO
SERIE 61-PO
Diametro 125-150 mm
Carga 300-450 kg
SERIE 61-HU
SERIE 61-HU
Diametro 100-150 mm
Carga 340-680 kg
SERIE 61-TA
SERIE 61-TA
Diametro 80-150 mm
Carga 220-680 kg
