Manufacturers since 1958
Ruedas Alex

Our range of H-PGI castors is recommended for the furniture and catering sectors.

It is used in: display stands, furniture, shelves, clothes racks and small furniture.

H SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0278 30 15 16 Bearing: Plain 46x36 34x24 5 49 33
1-0280 40 17 16 Bearing: Plain 46x36 34x24 5 57 43

H SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0023 30 15 16 Bearing: Plain -- -- 8 48 33
1-0024 40 17 16 Bearing: Plain -- -- 8 54 43

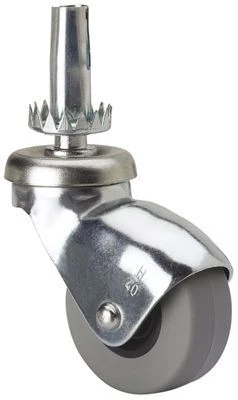

H SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
1-0288 30 15 16 Bearing: Plain -- -- 10x33 48 33
1-0290 40 17 16 Bearing: Plain -- -- 10x33 54 43

Other castors SERIE H

SERIE H-BP
Diametro 25-40 mm
Carga 10-22 kg
