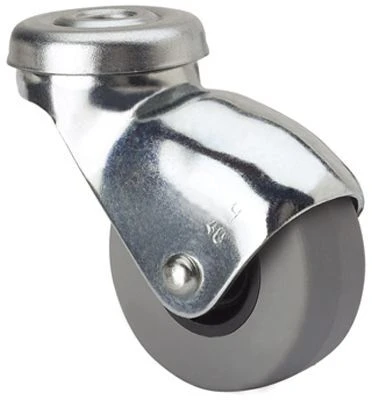

H SERIES-PGI 1-0024

Code: 1-0024

Our range of H-PGI castors is recommended for the furniture and catering sectors.

It is used in: display stands, furniture, shelves, clothes racks and small furniture.

Components

Brackets

Made of pressed steel castor up to 2 mm.Finish: glossy zinc plating.Fittings: Swivel Plate, stem with U-shaped plate, bolt hole.Wheel Bearings: Plain bearing.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

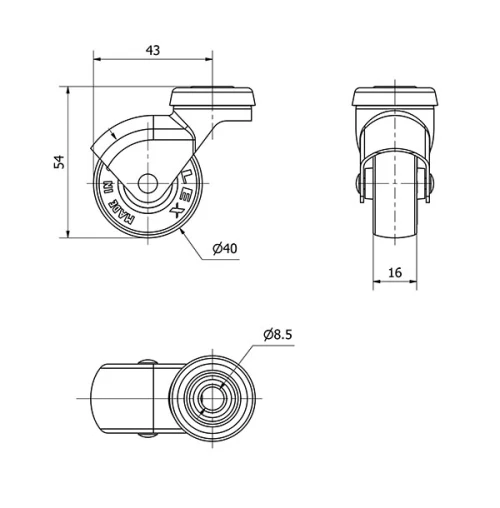

Technical Data 1-0024

EAN:

8422202100241

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,075

Volume (cm³):

102

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
