SERIE WL-RIT

Categories

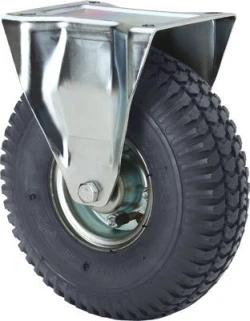

Black castors with polypropylene rim. Four and six-ply pneumatic tyre, especially indicated to support high-loads up to 220 Kg.

It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.

RIT: pneumatic, noiseless, proper shock absorption.

See comparative

WL SERIES-RIT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0922 260 200 85 Bearing: Roller 175x140 140x105 10 294 200
4-0924 260 200 85 Bearing: Ball 175x140 140x105 10 294 200
4-1633 260 220 85 Bearing: Roller 175x140 140x105 10 294 200
4-1635 260 220 85 Bearing: Ball 175x140 140x105 10 294 200
4-0028 260 250 85 Bearing: Ball 175x140 140x105 10 294 200
New

WL SERIES-RIT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0923 260 200 85 Bearing: Roller 175x140 140x105 10 294 --
4-0925 260 200 85 Bearing: Ball 175x140 140x105 10 294 --
4-1634 260 220 85 Bearing: Roller 175x140 140x105 10 294 --
4-1636 260 220 85 Bearing: Ball 175x140 140x105 10 294 --
4-0029 260 250 85 Bearing: Ball 175x140 140x105 10 294 --
New

WL SERIES-RIFB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0905 260 200 85 Bearing: Roller 175x140 140x105 10 294 200
4-0926 260 200 85 Bearing: Ball 175x140 140x105 10 294 200
4-0906 260 220 85 Bearing: Roller 175x140 140x105 10 294 200
4-0907 260 220 85 Bearing: Ball 175x140 140x105 10 294 200
4-0030 260 250 85 Bearing: Ball 175x140 140x105 10 294 200
New

Other castors SERIE WL

SERIE WL-RIFN
SERIE WL-RIFN
Diametro 260-260 mm
Carga 100-100 kg
SERIE WL-RIP
SERIE WL-RIP
Diametro 260-260 mm
Carga 175-175 kg
