WL SERIES-RIT 4-0924
EAN 8422202409245
Black castors with polypropylene rim. Four and six-ply pneumatic tyre, especially indicated to support high-loads up to 220 Kg.
It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.
RIT: pneumatic, noiseless, proper shock absorption.

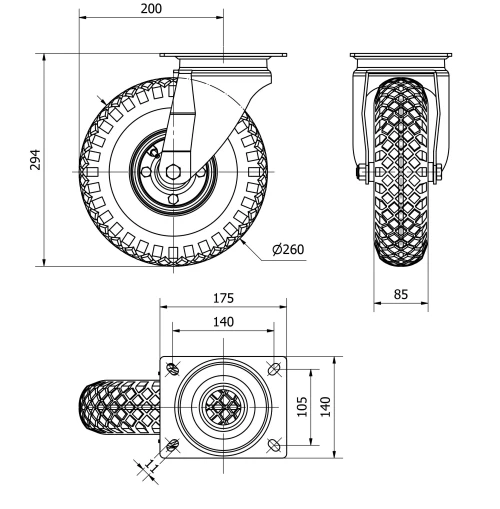

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Pneumatic Wheel |
Bearing | Ball |
Diameter (mm) | 260 |
Width of tyre (mm) | 85 |
Plate dimensions (mm) | 175x140 |
Distance between holes (mm) | 140x105 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 200 |
Overall height (mm) | 294 |
Load | 200 |
Unit Weight of the wheel (kg) | 4 |
Volume (cm3) | 3601 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Pressed steel bracket.Finish: zinc plated.Excellent shock absorption.Low rolling resistance on uneven floors.Very floor saving due to the air cushion.
Four/Six-ply pneumatic tyre on pressed steel rim
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Excelent
