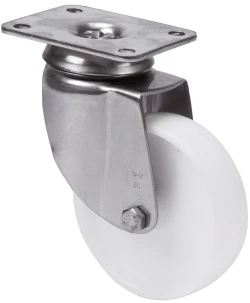

SERIE BHI INOX-BP White

Categories

White polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 80 Kg.

It is used in: outdoor areas, display stands, hospitality carts and restaurants.

Suitable for mechanical engineering projects by draftsmen and project executors.

BP: undeformable and resistant. Easy to start and move.

See comparative

BHI SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4339 60 50 25 Bearing: Plain 70x55 54x38 6 88 62
2-3059 80 70 25 Bearing: Plain 70x55 54x38 6 112 77
2-3060 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BHI SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4340 60 50 25 Bearing: Plain 75x66 54x38 6 88 --
2-3061 80 70 25 Bearing: Plain 75x66 54x38 6 112 --
2-3062 100 80 25 Bearing: Plain 75x66 54x38 6 134 --

BHI SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4515 60 50 25 Bearing: Plain 70x55 54x38 6 88 62
2-3063 80 70 25 Bearing: Plain 70x55 54x38 6 112 77
2-3064 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BHI SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4514 60 50 25 Bearing: Plain -- -- 10 85 62
2-3065 80 70 25 Bearing: Plain -- -- 10 108 77
2-3066 100 80 25 Bearing: Plain -- -- 10 130 90

BHI SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4516 60 50 25 Bearing: Plain -- -- 10 85 62
2-3067 80 70 25 Bearing: Plain -- -- 10 108 77
2-3068 100 80 25 Bearing: Plain -- -- 10 130 90

Other castors SERIE BHI INOX

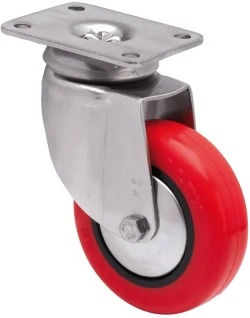

SERIE BHI INOX-PPI
SERIE BHI INOX-PPI
Diametro 60-100 mm
Carga 50-80 kg

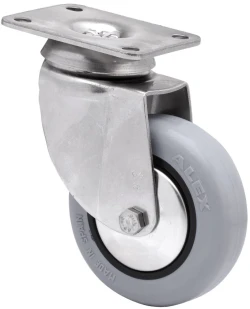

SERIE BHI INOX-PGI
SERIE BHI INOX-PGI
Diametro 60-100 mm
Carga 40-70 kg
