Which castors do you need?

SERIE BHI INOX-PPI

Categories

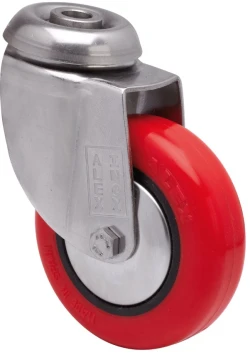

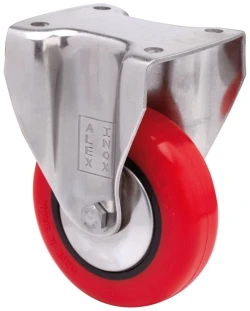

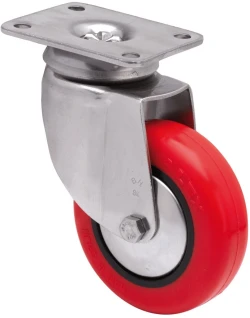

Injected polyurethane castors with polypropylene centre and stainless steel (AISI 304) components. Especially indicated to support high-loads up to 80 Kg.

It is used in: outdoor areas, food trolleys, display stands, catering carts and restaurants.

Suitable for mechanical engineering projects by draftsmen and project executors.

PPI: noiseless and undeformable. Easy to move with load.

See comparative

BHI SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4335 60 50 22 Bearing: Plain 70x55 54x38 6 88 62
2-3049 80 70 24 Bearing: Plain 70x55 54x38 6 112 77
2-3050 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BHI SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4336 60 50 22 Bearing: Plain 75x66 54x38 6 88 --
2-3051 80 70 24 Bearing: Plain 75x66 54x38 6 112 --
2-3052 100 80 25 Bearing: Plain 75x66 54x38 6 134 --

BHI SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4512 60 50 22 Bearing: Plain 70x55 54x38 6 88 62
2-3053 80 70 24 Bearing: Plain 70x55 54x38 6 112 77
2-3054 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BHI SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4511 60 50 22 Bearing: Plain -- -- 10 85 62
2-3055 80 70 24 Bearing: Plain -- -- 10 108 77
2-3056 100 80 25 Bearing: Plain -- -- 10 130 90

BHI SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4513 60 50 22 Bearing: Plain -- -- 10 85 62
2-3057 80 70 24 Bearing: Plain -- -- 10 108 77
2-3058 100 80 25 Bearing: Plain -- -- 10 130 90

Other castors SERIE BHI INOX

SERIE BHI INOX-BP White
SERIE BHI INOX-BP White
Diametro 60-100 mm
Carga 50-80 kg
SERIE BHI INOX-PGI
SERIE BHI INOX-PGI
Diametro 60-100 mm
Carga 40-70 kg
