BHI SERIES-PPI 2-3050

Code: 2-3050

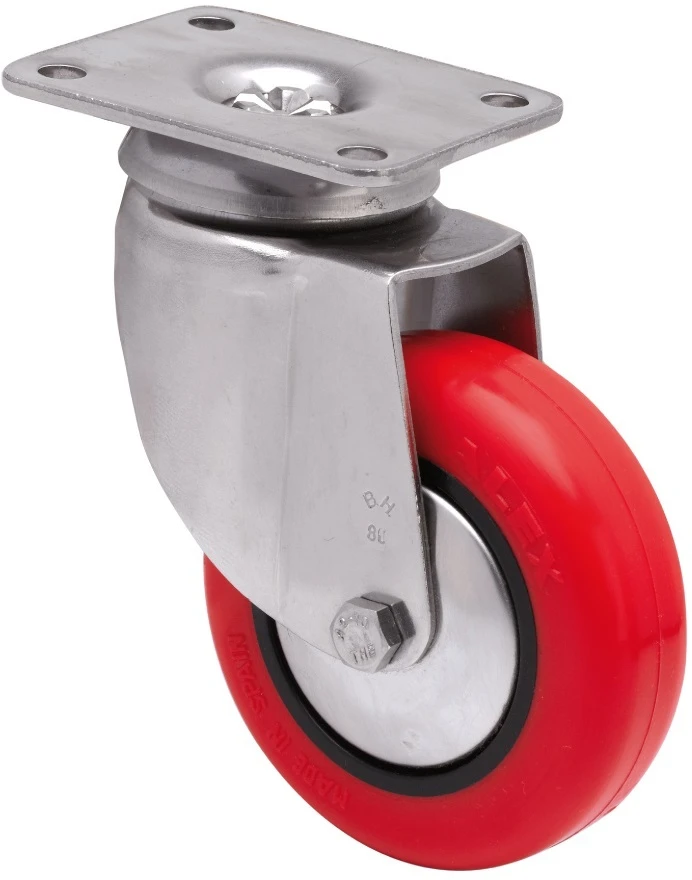

Injected polyurethane castors with polypropylene centre and stainless steel (AISI 304) components. Especially indicated to support high-loads up to 80 Kg.

It is used in: outdoor areas, food trolleys, display stands, catering carts and restaurants.

Suitable for mechanical engineering projects by draftsmen and project executors.

PPI: noiseless and undeformable. Easy to move with load.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 2 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Double ball bearing swivel head. Manufactured to European standards EN 12528/12530.

Wheel

Red polyurethane tyre on black polypropylene centre. 95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

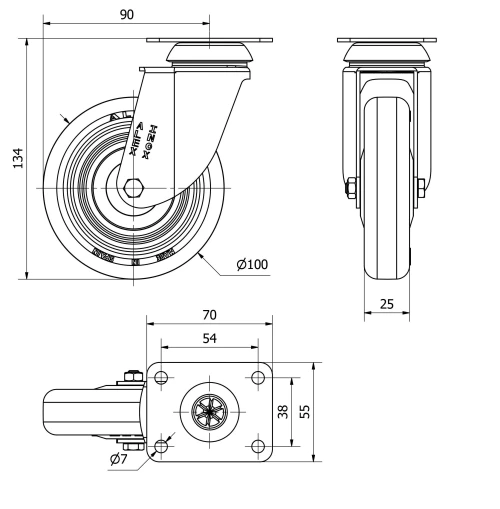

Technical Data 2-3050

EAN:

8422202230504

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

134

Load:

Unit Weight of the wheel (kg):

0,48

Volume (cm³):

921
