BHI SERIES-PPI 2-4335
EAN 8422202243351
Injected polyurethane castors with polypropylene centre and stainless steel (AISI 304) components. Especially indicated to support high-loads up to 80 Kg.
It is used in: outdoor areas, food trolleys, display stands, catering carts and restaurants.
Suitable for mechanical engineering projects by draftsmen and project executors.
PPI: noiseless and undeformable. Easy to move with load.

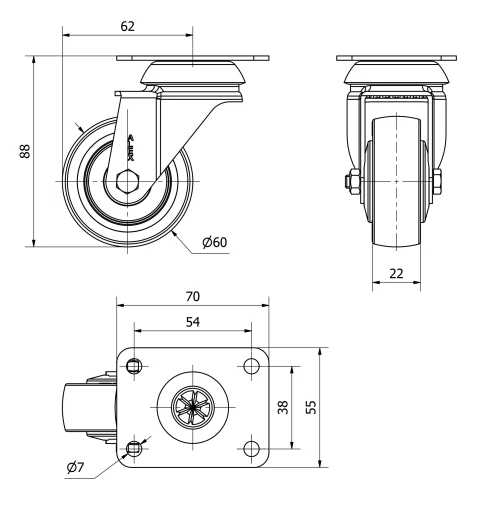

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 22 |
Plate dimensions (mm) | 70x55 |
Distance between holes (mm) | 54x38 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 62 |
Overall height (mm) | 88 |
Load | 50 |
Unit Weight of the wheel (kg) | 0.332 |
Volume (cm3) | 469 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high-quality pressed stainless steel (AISI 304) up to 2 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Double ball bearing swivel head. Manufactured to European standards EN 12528/12530.
Red polyurethane tyre on black polypropylene centre. 95º shore A
Temperature range: -25º ÷ +80º
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
