Which castors do you need?

SERIE 602-602

Categories

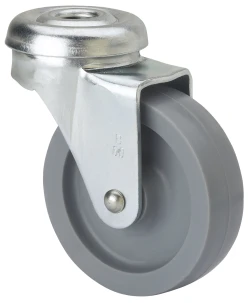

Grey polypropylene castors especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture, and bedside tables.

TWIN-LEX 602: undeformable. Easy to move.

See comparative

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0164 30 15 16 Bearing: Plain 46x36 34x24 5 51 32
TW0165 40 22 16 Bearing: Plain 46x36 34x24 5 58 45
TW0166 50 35 18 Bearing: Plain 70x55 54x38 6 72 46
TW0167 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0172 40 22 16 Bearing: Plain 46x36 34x24 5 58 45
TW0173 50 35 18 Bearing: Plain 70x55 54x38 6 72 46
TW0174 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0194 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0168 30 15 16 Bearing: Plain -- -- 8 48 32
TW0169 40 22 16 Bearing: Plain -- -- 8 57 45
TW0170 50 35 18 Bearing: Plain -- -- 10 67 46
TW0171 60 40 18 Bearing: Plain -- -- 10 78 53

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0175 40 22 16 Bearing: Plain -- -- 8 57 45
TW0176 50 35 18 Bearing: Plain -- -- 10 67 46
TW0177 60 40 18 Bearing: Plain -- -- 6 78 53

602 SERIES-602

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0195 60 40 18 Bearing: Plain -- -- 10 78 53
