602 SERIES-602 TW0174

Code: TW0174

Grey polypropylene castors especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture, and bedside tables.

TWIN-LEX 602: undeformable. Easy to move.

Components

Brackets

Made of pressed steel castor up to 2 mm. Finish: Zinc-plated.One single ball bearing swivel head.Rubber wheels Ø 50 and 60 mm with threadguards.Manufactured to European standards EN 12528.

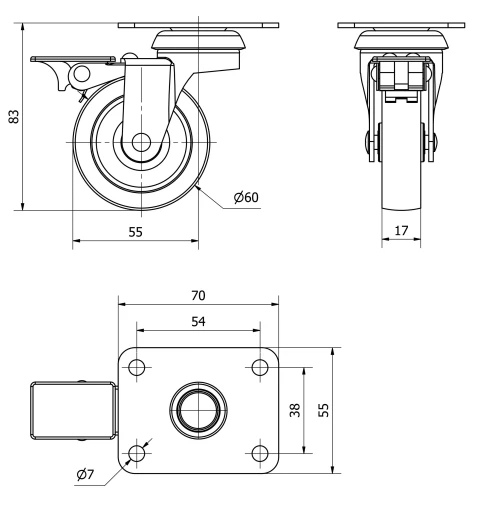

Technical Data TW0174

EAN:

8422202001746

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,22

Volume (cm³):

392,04
