Manufacturers since 1958
Ruedas Alex

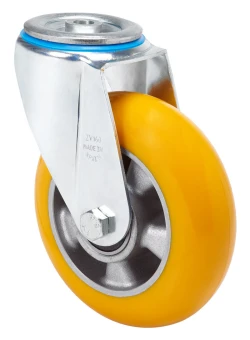

Castors with aluminum centre and cast polyurethane tyre with a hardness of 95º Shore A, with a ball-shaped tread tyre, especially indicated to support high-loads up to 400 Kg. It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, pneumatics factories, internal losgistics, transport tools,  elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers and sport centres. Mainly used in the aeronautic sector, railway, automobile factories, food industy, repair shops and industrial activities. Suitable for mechanical engineering projects by draftsmen and project executors.

AUAB: easy to use. High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Low turning resistance and easier rolling.

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4813 125 225 40 Bearing: Ball 106x86 86/80x60 8 155 107
2-3970 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3983 200 400 50 Bearing: Ball 140x110 105x80 10 242 155

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4814 125 225 40 Bearing: Ball 107x86 80x60 8 155 --
2-3971 160 400 50 Bearing: Ball 136x116 105x80 10 201 --
2-3984 200 400 50 Bearing: Ball 136x116 105x80 10 242 --

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4815 125 225 40 Bearing: Ball 106x86 86/80x60 8 155 107
2-3972 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3985 200 400 50 Bearing: Ball 140x110 105x80 10 242 155

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3973 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3986 200 400 50 Bearing: Ball 140x110 105x80 10 242 155

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4816 125 200 40 Bearing: Ball -- -- 12 151 107
2-3974 160 300 50 Bearing: Ball -- -- 12 195 133
2-3987 200 300 50 Bearing: Ball -- -- 12 236 155

ZV SERIES-AUAB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4817 125 200 40 Bearing: Ball -- -- 12 151 107
2-3975 160 300 50 Bearing: Ball -- -- 12 195 133
2-3988 200 300 50 Bearing: Ball -- -- 12 236 155

Other castors SERIE ZV

SERIE ZV-DE
Diametro 100-250 mm
Carga 150-450 kg
SERIE ZV-BS
Diametro 80-250 mm
Carga 80-250 kg
SERIE ZV-PS
Diametro 80-200 mm
Carga 70-215 kg
ZV-GREY PS SERIE
Diametro 160-200 mm
Carga 160-215 kg
SERIE ZV-PGA
Diametro 80-150 mm
Carga 80-140 kg
SERIE ZV-PGM
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-PGR
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-PGZ
Diametro 80-200 mm
Carga 80-180 kg
SERIE ZV-PU
Diametro 100-150 mm
Carga 100-200 kg
SERIE ZV-PU (AH PEQ)
Diametro 80-80 mm
Carga 130-130 kg
SERIE ZV-AUB
Diametro 80-250 mm
Carga 150-400 kg
SERIE ZV-AUGB
Diametro 160-200 mm
Carga 300-400 kg
SERIE ZV-AUAGB
Diametro 160-200 mm
Carga 300-400 kg
SERIE ZV-DEGB
Diametro 160-200 mm
Carga 300-400 kg
SERIE ZV-TA
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-PO
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-POL
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-TN
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-UT
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-POA
Diametro 80-200 mm
Carga 120-300 kg
SERIE ZV-TD
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-TT
Diametro 80-100 mm
Carga 100-125 kg
SERIE ZV-PGAIB
Diametro 100-150 mm
Carga 100-125 kg
SERIE ZV-PGAIB (AH PEQ)
Diametro 80-80 mm
Carga 85-85 kg
SERIE ZV-PGC
Diametro 80-150 mm
Carga 80-180 kg
SERIE ZV-PGC (AH PEQ)
Diametro 80-150 mm
Carga 80-125 kg
SERIE ZV-THG
Diametro 100-100 mm
Carga 100-100 kg
