Manufacturers since 1958
Ruedas Alex

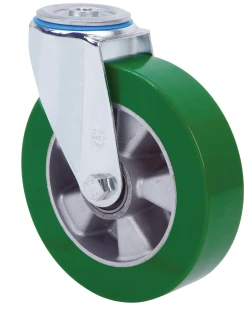

Castors with aluminium centre and green polyurethane tyre with a hardness of 80º Shore A. Especially indicated to support high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, transport tools, elevating factories, transport carts, ladders, sweeping machines, polishing machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, food industry, containers and sport centres.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, reapair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUGB: green polyurethane for heavy duty works. Absorption to impacts.

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3924 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3692 200 400 50 Bearing: Ball 140x110 105x80 10 242 155

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3925 160 400 50 Bearing: Ball 136x116 105x80 10 201 --
2-3693 200 400 50 Bearing: Ball 136x116 105x80 10 242 --

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3926 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3694 200 400 50 Bearing: Ball 140x110 105x80 10 242 153

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3927 160 400 50 Bearing: Ball 140x110 105x80 10 201 133
2-3695 200 400 50 Bearing: Ball 140x110 105x80 10 242 153

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-3928 160 300 50 Bearing: Ball -- -- 12 195 133
2-3696 200 300 50 Bearing: Ball -- -- 12 236 153

ZV SERIES-AUGB

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-3929 160 300 50 Bearing: Ball -- -- 12 195 133
2-3697 200 300 50 Bearing: Ball -- -- 12 236 153

Other castors SERIE ZV

SERIE ZV-DE
Diametro 100-250 mm
Carga 150-450 kg
SERIE ZV-BS
Diametro 80-250 mm
Carga 80-250 kg
SERIE ZV-PS
Diametro 80-200 mm
Carga 70-215 kg
ZV-GREY PS SERIE
Diametro 160-200 mm
Carga 160-215 kg
SERIE ZV-PGA
Diametro 80-150 mm
Carga 80-140 kg
SERIE ZV-PGM
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-PGR
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-PGZ
Diametro 80-200 mm
Carga 80-180 kg
SERIE ZV-PU
Diametro 100-150 mm
Carga 100-200 kg
SERIE ZV-PU (AH PEQ)
Diametro 80-80 mm
Carga 130-130 kg
SERIE ZV-AUB
Diametro 80-250 mm
Carga 150-400 kg
SERIE ZV-AUAB
Diametro 125-200 mm
Carga 200-400 kg
SERIE ZV-AUAGB
Diametro 160-200 mm
Carga 300-400 kg
SERIE ZV-DEGB
Diametro 160-200 mm
Carga 300-400 kg
SERIE ZV-TA
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-PO
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-POL
Diametro 80-200 mm
Carga 100-400 kg
SERIE ZV-TN
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-UT
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-POA
Diametro 80-200 mm
Carga 120-300 kg
SERIE ZV-TD
Diametro 80-200 mm
Carga 150-400 kg
SERIE ZV-TT
Diametro 80-100 mm
Carga 100-125 kg
SERIE ZV-PGAIB
Diametro 100-150 mm
Carga 100-125 kg
SERIE ZV-PGAIB (AH PEQ)
Diametro 80-80 mm
Carga 85-85 kg
SERIE ZV-PGC
Diametro 80-150 mm
Carga 80-180 kg
SERIE ZV-PGC (AH PEQ)
Diametro 80-150 mm
Carga 80-125 kg
SERIE ZV-THG
Diametro 100-100 mm
Carga 100-100 kg
