ZV SERIES-AUGB 2-3692
EAN 8422202236926

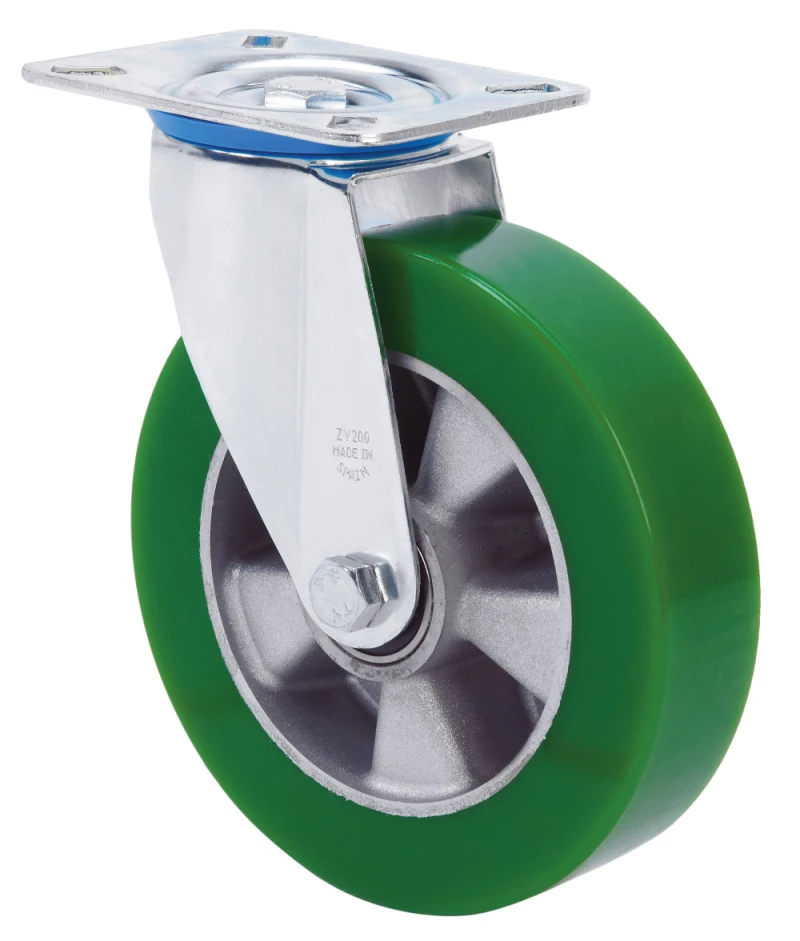

Castors with aluminium centre and green polyurethane tyre with a hardness of 80º Shore A. Especially indicated to support high-loads up to 400 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, transport tools, elevating factories, transport carts, ladders, sweeping machines, polishing machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, food industry, containers and sport centres.
Mainly used in the aeronautic sector, railway, automobile factories, food industry, reapair shops and industrial activities.
Suitable for mechanical engineering projects by draftsmen and project executors.
AUGB: green polyurethane for heavy duty works. Absorption to impacts.

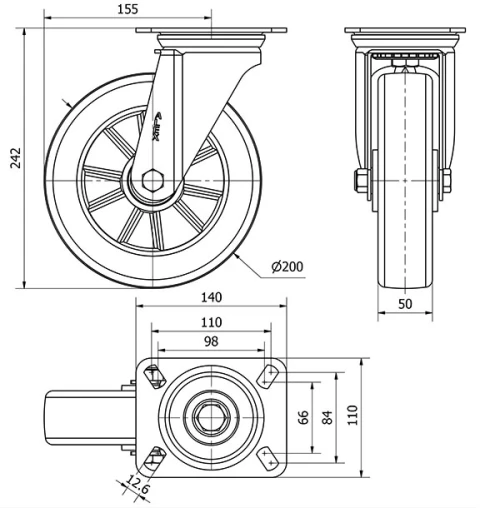

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Hardness of tread | 80º SHORE A |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 140x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 155 |
Overall height (mm) | 242 |
Load | 400 |
Unit Weight of the wheel (kg) | 3.2 |
Volume (cm3) | 5936 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
