ZV SERIES-AUGB 2-3696

Code: 2-3696

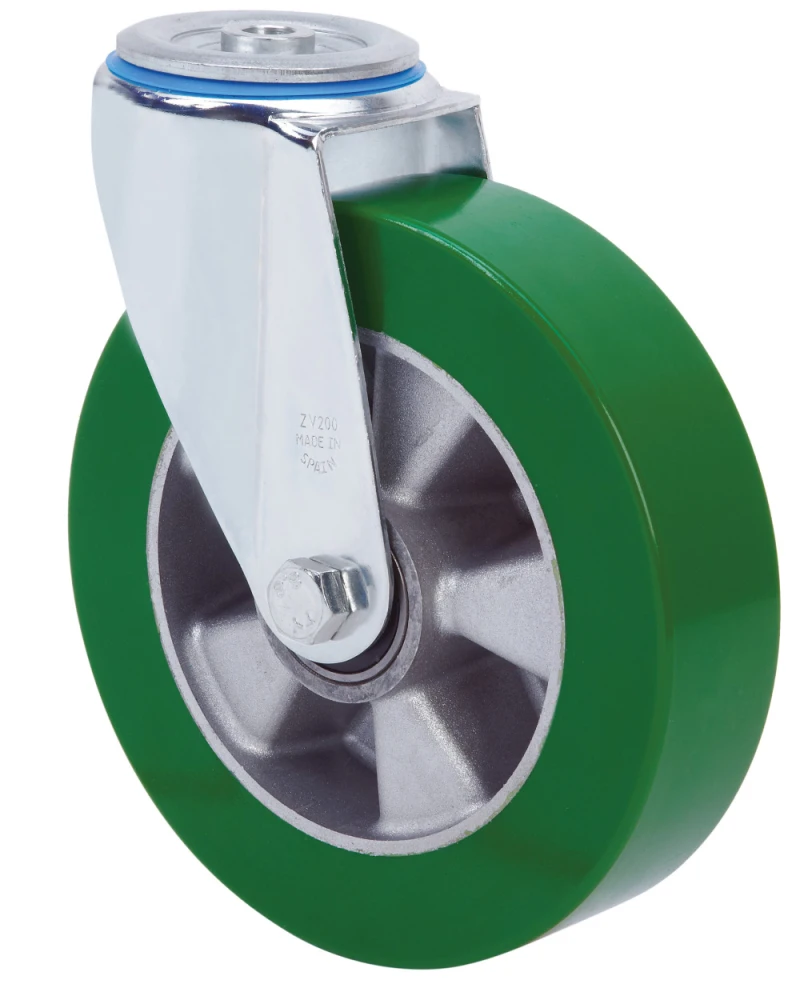

Castors with aluminium centre and green polyurethane tyre with a hardness of 80º Shore A. Especially indicated to support high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, transport tools, elevating factories, transport carts, ladders, sweeping machines, polishing machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, food industry, containers and sport centres.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, reapair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUGB: green polyurethane for heavy duty works. Absorption to impacts.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

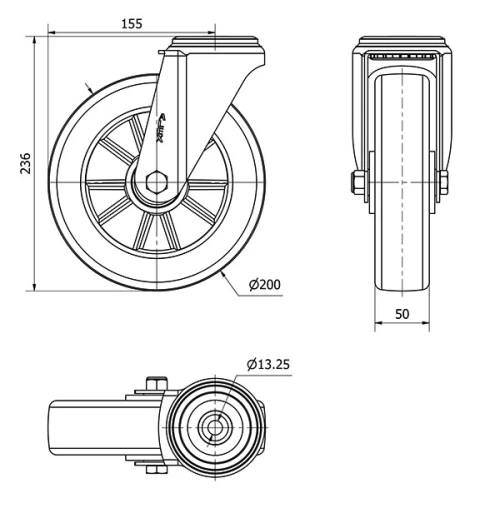

Technical Data 2-3696

EAN:

8422202236964

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

80º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

153

Overall height (mm):

236

Load:

300

Unit Weight of the wheel (kg):

2,8

Volume (cm³):

4263
