DK SERIES-Black DK 1-0394

Code: 1-0394

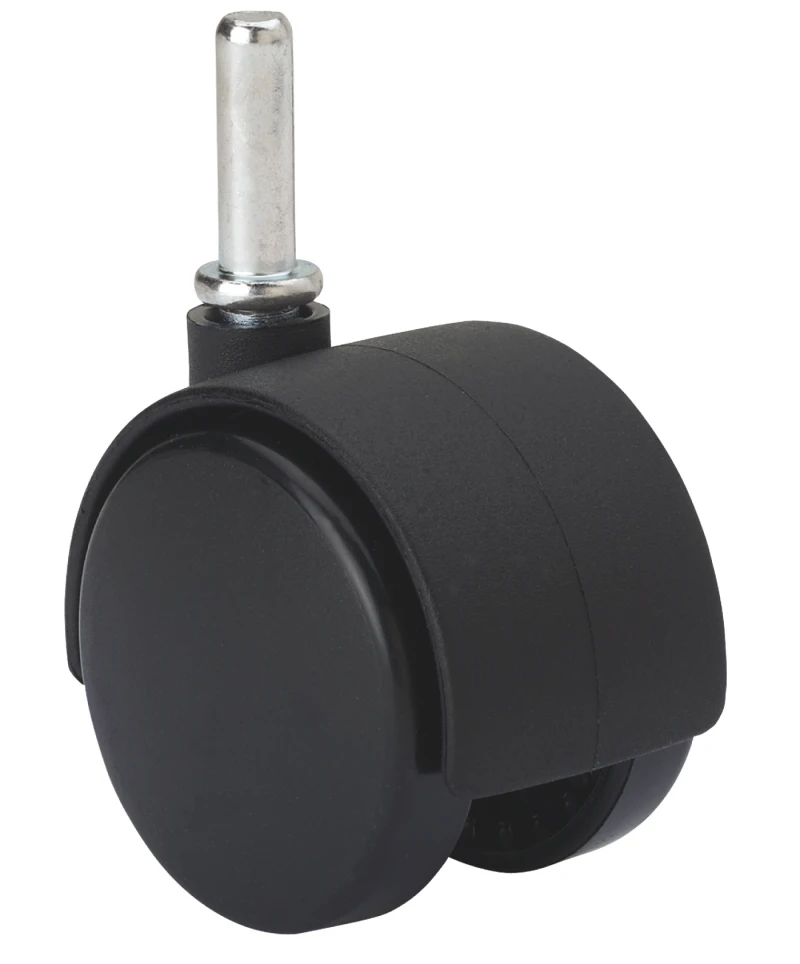

Black polyamide wheels specially designed to support loads of up to 60 kg.

Suitable for use in display stands, furniture, beauty and hairdressing equipment, office chairs, stools, coat racks, photocopiers, cabinetmaking applications, hospital equipment, clinical and healthcare furniture, IV stands, drip poles, bed bases, and waste bins.

DK Polyamide: Lightweight and durable. Good load-bearing capacity. Suitable for use near heat sources and stoves.

Components

Brackets

Fittings: Swivel Plate, threaded stem, stem with circlip, stem without circlip, stem with U-shaped plate.Finish: black, golden, gray, chrome.Wheels: Polyurethane and polypropylene tyre.

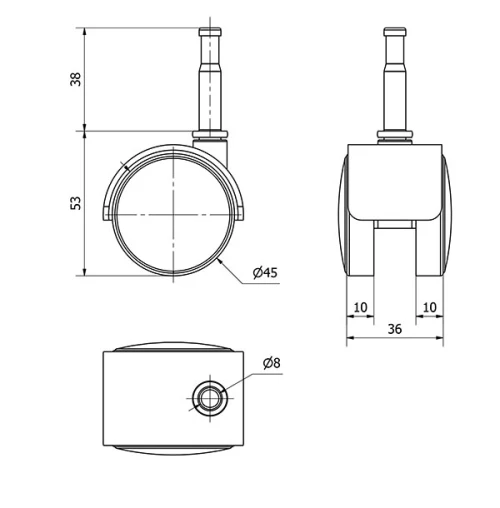

Technical Data 1-0394

EAN:

8422202103945

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Width x height of stem:

8x38

Plate hole diameter (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,075

Volume (cm³):

133
