3242 1-0119

See comparative

Code: 1-0119

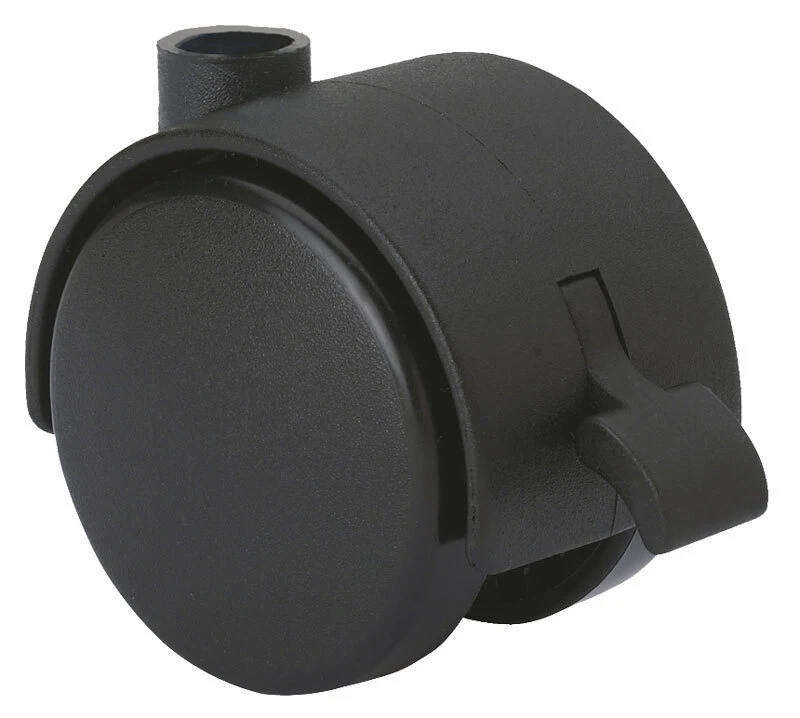

Black polyamide wheels specially designed to support loads of up to 60 kg.

Suitable for use in display stands, furniture, beauty and hairdressing equipment, office chairs, stools, coat racks, photocopiers, cabinetmaking applications, hospital equipment, clinical and healthcare furniture, IV stands, drip poles, bed bases, and waste bins.

DK Polyamide: Lightweight and durable. Good load-bearing capacity. Suitable for use near heat sources and stoves.

Components

Brackets

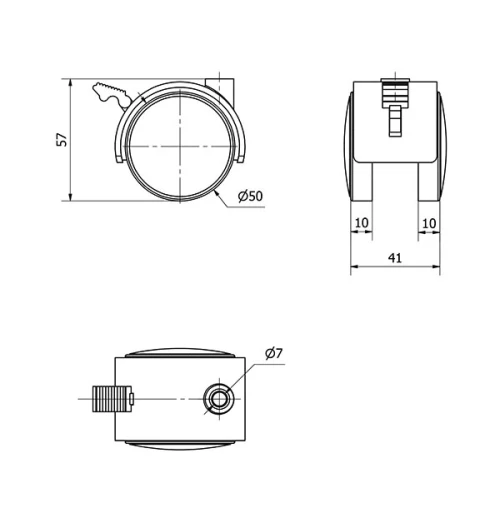

Technical Data 1-0119

EAN:

8422202101194

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Load:

Unit Weight of the wheel (kg):

0,05

Volume (cm³):

110

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
