Which castors do you need?
1-0773
EAN 8422202107738

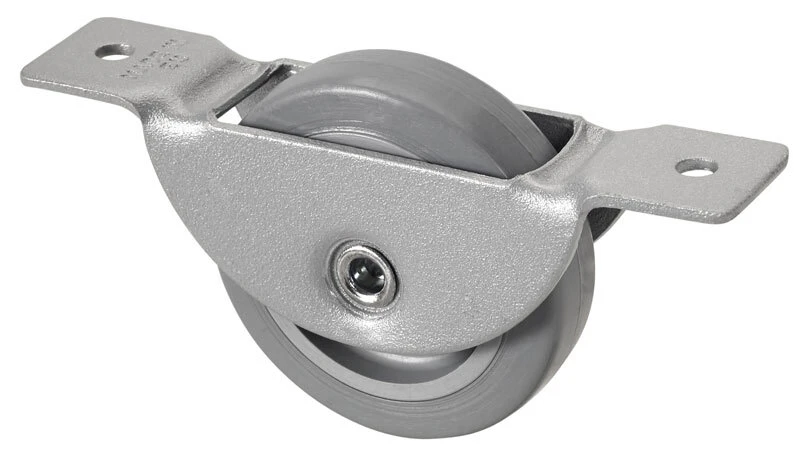

Grey injected rubber castors. Especially indicated to support high-loads up to 60 Kg. each castor. It is used in: small furniture, truckle beds, storage beds, bedside tables, chests of drawers, sofas and decoration furniture.
PGI: noiseless. Does not scratch or leave marks on floor. Respectful towards parquet flooring, undeformable.

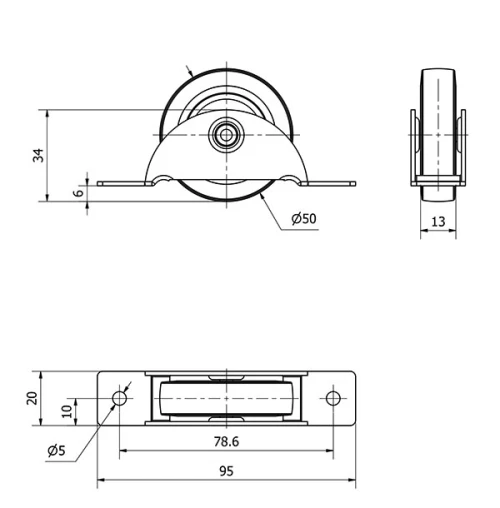

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Cast Iron |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 13 |
Overall height (mm) | 34 |
Load | 60 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Wheel
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
