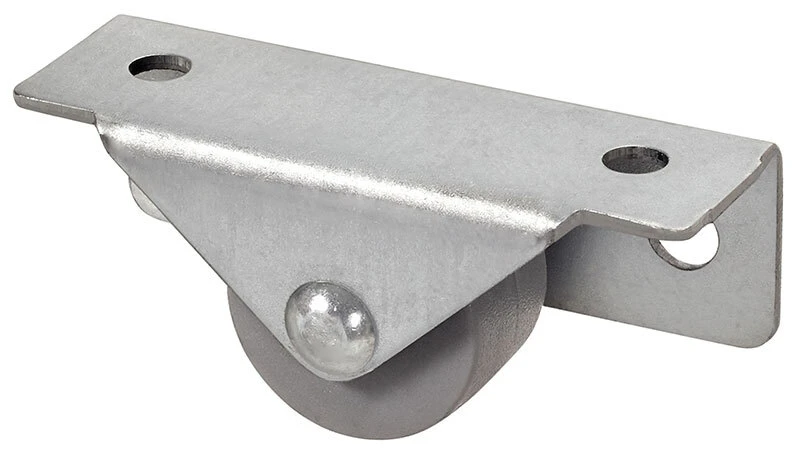

N SERIES-PGI 1-0776

Code: 1-0776

Grey injected rubber castors. Especially indicated to support high-loads up to 60 Kg. each castor. It is used in: small furniture, truckle beds, storage beds, bedside tables, chests of drawers, sofas and decoration furniture.

PGI: noiseless. Does not scratch or leave marks on floor. Respectful towards parquet flooring, undeformable.

Components

Brackets

Manufactured from pressed steel sheet or Polymix up to 2 mm thick. Rubber wheels available in diameters of 25, 30, 40, and 50 mm. Quiet-running, non-marking wheels that are suitable for parquet flooring, resistant to deformation, durable, and easy to manoeuvre. Manufactured in accordance with European Standard EN 12528.

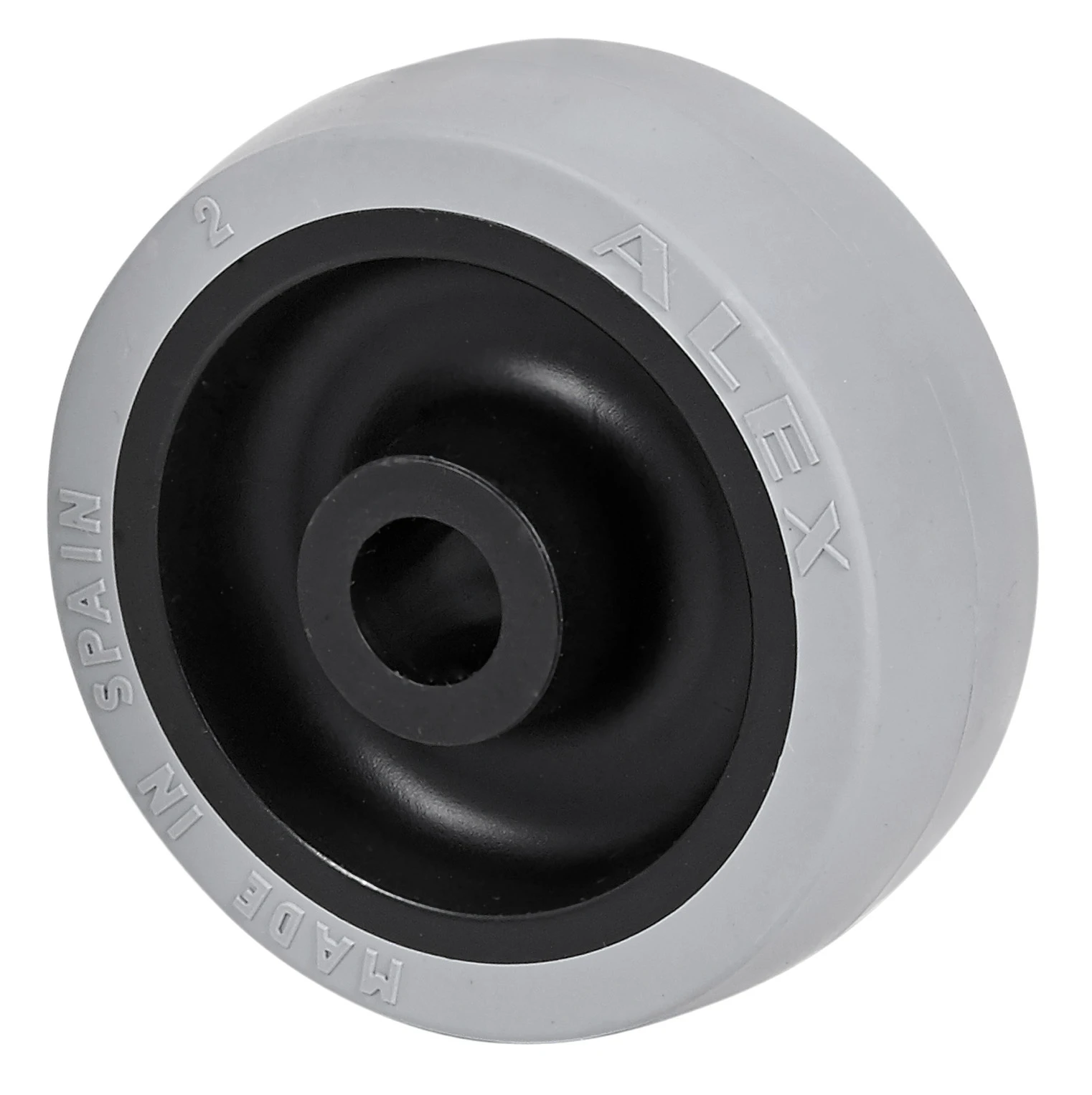

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

Technical Data 1-0776

EAN:

8422202107769

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Overall height (mm):

Load:
