BD SERIES-BP 1-0721

See comparative

Code: 1-0721

Grey polypropylene castors especially indicated to support high-loads up to 40 Kg.

It is used in: small furniture, display stands, displays, display cabinets, computer tables, bedside tables and file cabinets.

BP: robust and undeformable. Easy to start and move.

Components

Brackets

Made of pressed steel castor up to 2 mm. Finish: Nickel-plated. Rubber wheels Ø 50,Ø60 mm with threadguards. Manufactured to European standards EN 12528.

Wheel

Grey polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

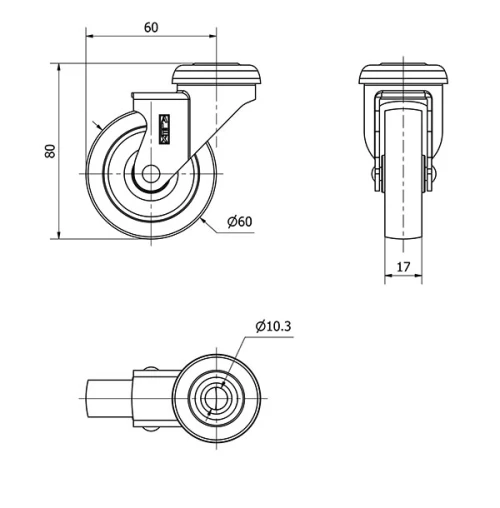

Technical Data 1-0721

EAN:

8422202107219

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Plastic Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,16

Volume (cm³):

257
