Which castors do you need?

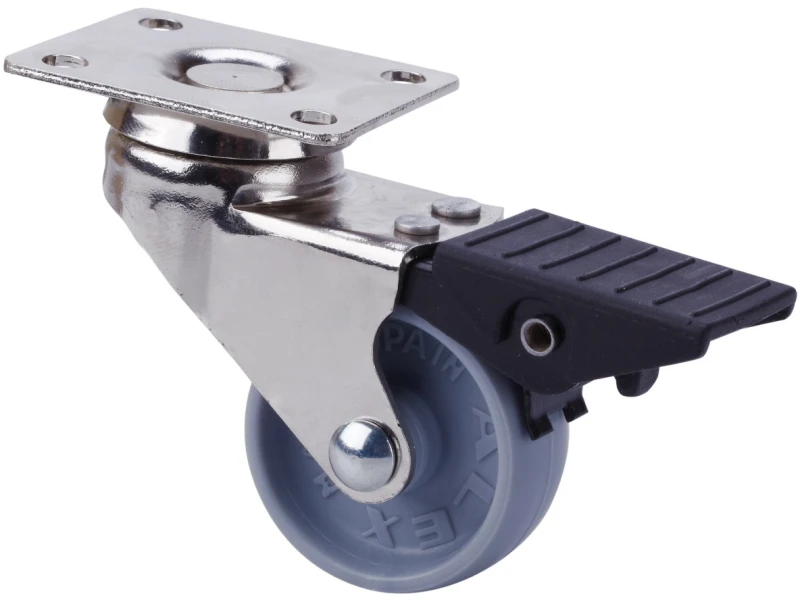

BD SERIES-BP 1-0724
EAN 8422202107240
Grey polypropylene castors especially indicated to support high-loads up to 40 Kg.
It is used in: small furniture, display stands, displays, display cabinets, computer tables, bedside tables and file cabinets.
BP: robust and undeformable. Easy to start and move.

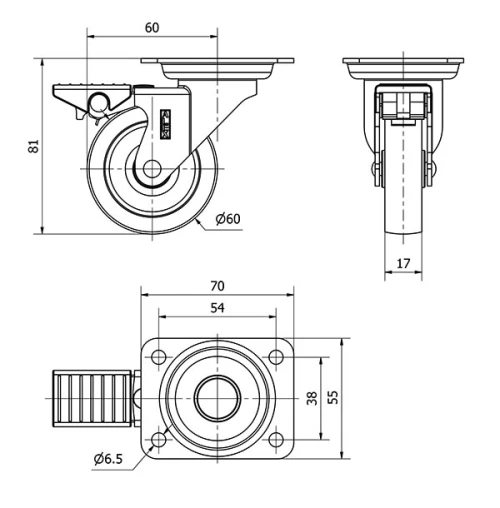

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Material | Plastic Polypropylene |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 17 |
Plate dimensions (mm) | 70x55 |
Distance between holes (mm) | 54x38 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 65 |
Overall height (mm) | 81 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.22 |
Volume (cm3) | 495 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Nickel-plated. Rubber wheels Ø 50,Ø60 mm with threadguards. Manufactured to European standards EN 12528.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
