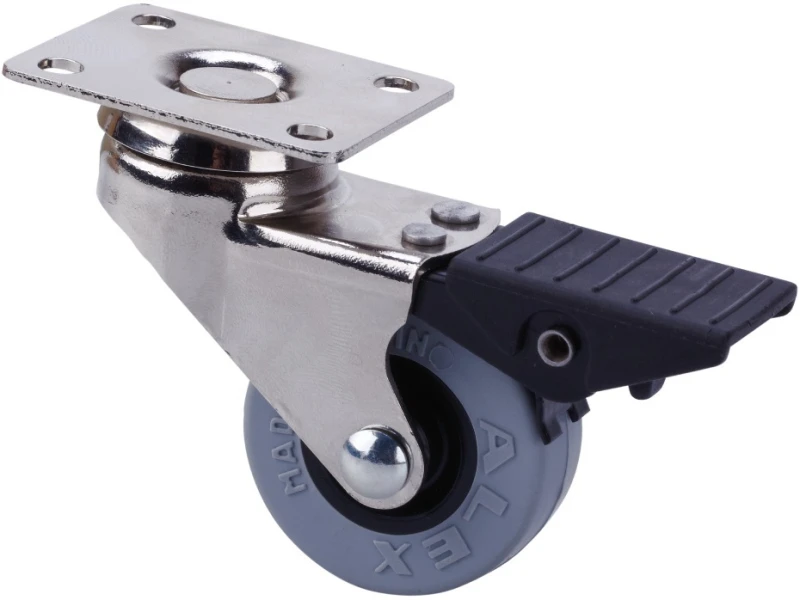

BD SERIES-PGI 1-0710

See comparative

Code: 1-0710

Grey injected rubber castors especially indicated to support high-loads up to 25 Kg.

It is used in: small furniture, display stands, display cabinets, computer tables, bedside tables and file cabinets.

PGI: does not scratch or leave marks on floor. Noiseless.

Components

Brackets

Made of pressed steel castor up to 2 mm. Finish: Nickel-plated. Rubber wheels Ø 50,Ø60 mm with threadguards. Manufactured to European standards EN 12528.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

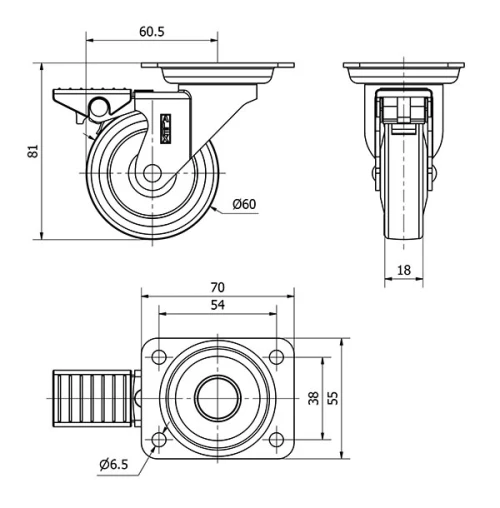

Technical Data 1-0710

EAN:

8422202107103

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,235

Volume (cm³):

495
