BD SERIES-PPI 1-0745

Code: 1-0745

Red soft injected polyurethane castors, especially indicated to support high-loads up to 40 Kg.

It is used in: small furniture, display stands, displays, display cabinets, computer tables, bedside tables and file cabinets.

PPI: noiseless and undeformable. Easy to move.

Components

Brackets

Made of pressed steel castor up to 2 mm. Finish: Nickel-plated. Rubber wheels Ø 50,Ø60 mm with threadguards. Manufactured to European standards EN 12528.

Wheel

Red polyurethane tyre on black polypropylene centre. 95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

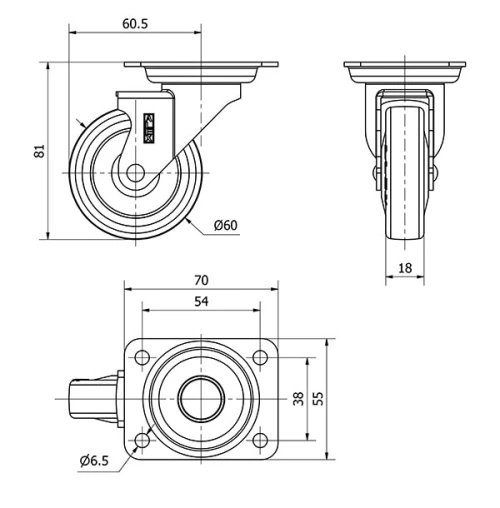

Technical Data 1-0745

EAN:

8422202107455

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,215

Volume (cm³):

423
