Which castors do you need?
BD SERIES-PUA 1-0734
EAN 8422202107349

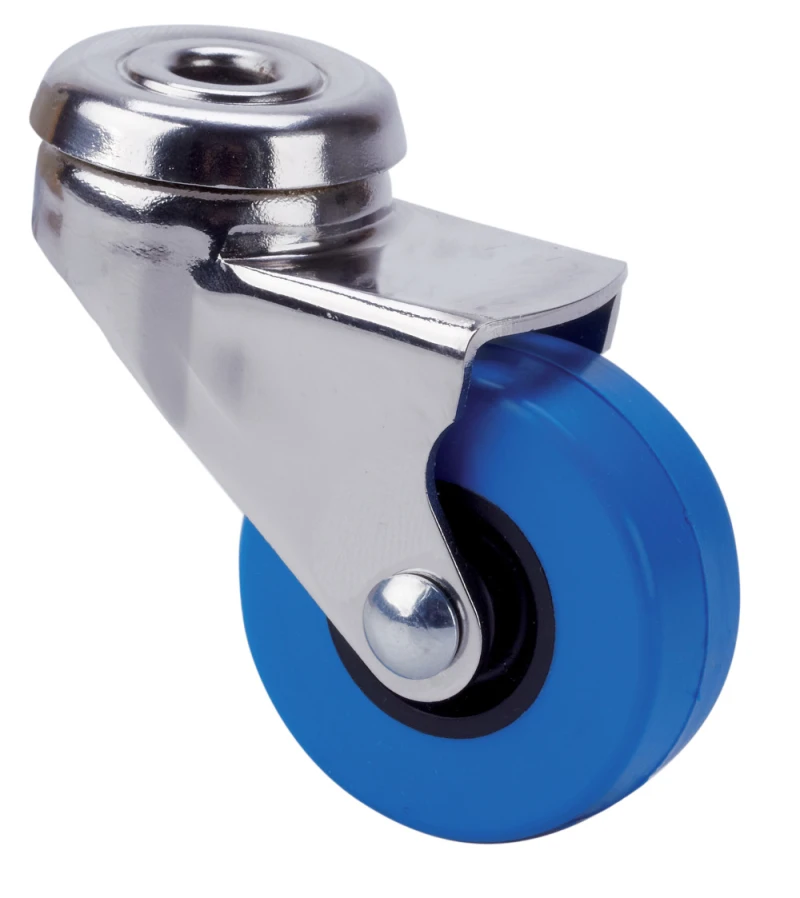

Blue soft injected polyurethane castors, especially indicated to support high-loads up to 40 Kg.
It is used in: small furniture, display stands, displays, display cabinets, computer tables, bedside tables and file cabinets.
PUA: superior glossy finish. Noiseless, clean and elastic. Easy to move.

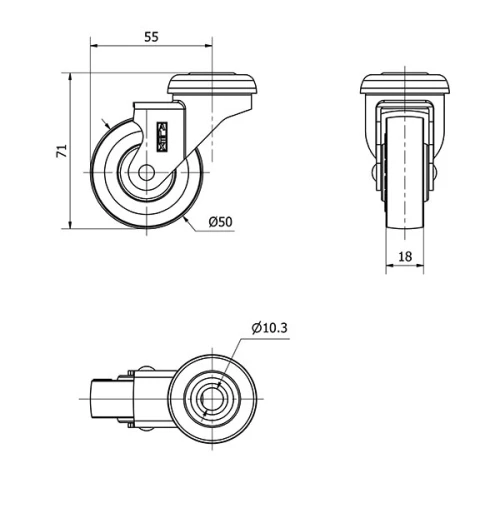

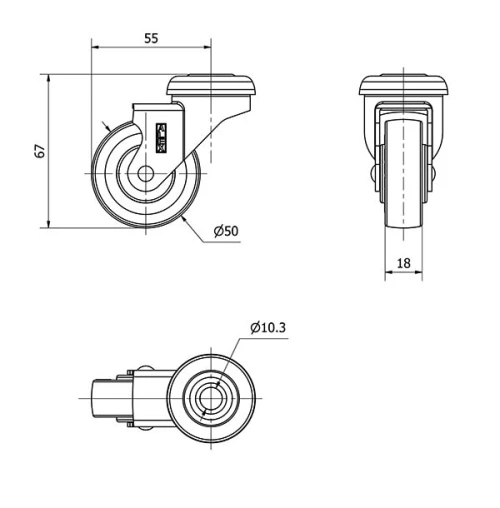

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 18 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 55 |
Overall height (mm) | 67 |
Load | 35 |
Unit Weight of the wheel (kg) | 0.155 |
Volume (cm3) | 207 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Nickel-plated. Rubber wheels Ø 50,Ø60 mm with threadguards. Manufactured to European standards EN 12528.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
