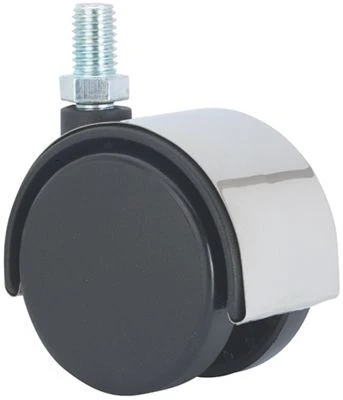

DK SERIES-Chrome DK 1-0498

Code: 1-0498

Chrome castors especially indicated to support high-loads up to 50 Kg.

It is used in: display stands, furniture, beauty and hairdresser's equipment, office chairs, stools, clothes racks, photocopiers, cabinetmaker's, hospital equipment, sanitary furniture, drip holders, drips, storage beds and waste bins.

DK CHROME: light and resistant. Ideal load capacity.

Components

Brackets

Fittings: Swivel Plate, threaded stem, stem with circlip, stem without circlip, stem with U-shaped plate. Finish: black, golden, gray, chrome. Wheels: Polyurethane and polypropylene tyre.

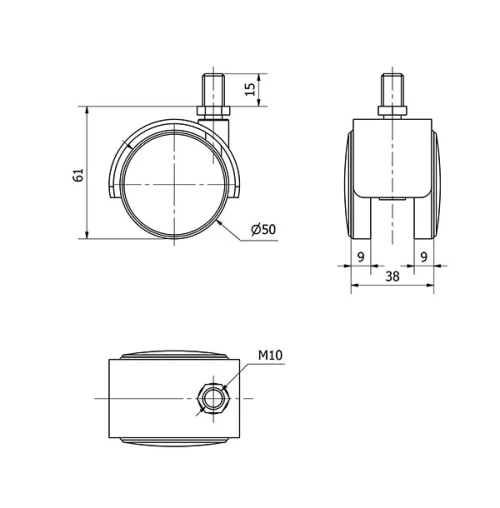

Technical Data 1-0498

EAN:

8422202104980

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Width x height of stem:

10x15

Plate hole diameter (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,095

Volume (cm³):

172
