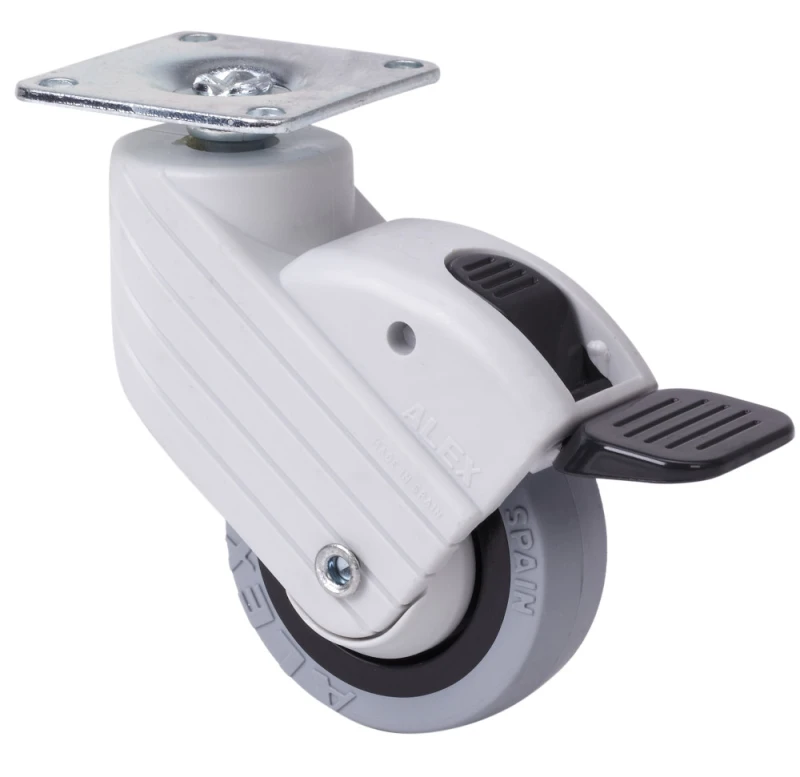

HP SERIES-PGI 1-0760

Code: 1-0760

Grey rubber castors, especially indicated to support loads up to 22 Kg.

It is used in: display stands, commercial furniture, stools, furniture, catering, labor rooms, hospital equipment, clinical furniture, drips holders and housekeeping carts.

PGI GREY: does not scratch or leave marks on floor. Suitable for all kind of flooring surfaces.

Components

Brackets

Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

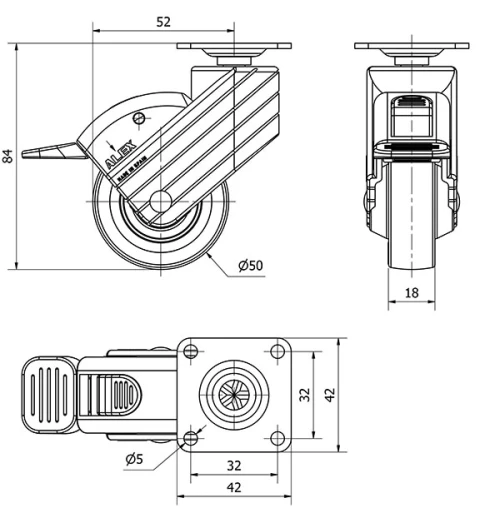

Technical Data 1-0760

EAN:

8422202107608

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

42x42

Distance between holes (mm):

32x32

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,1

Volume (cm³):

349

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

1-0756
