HP SERIES-PPI 1-0762

Code: 1-0762

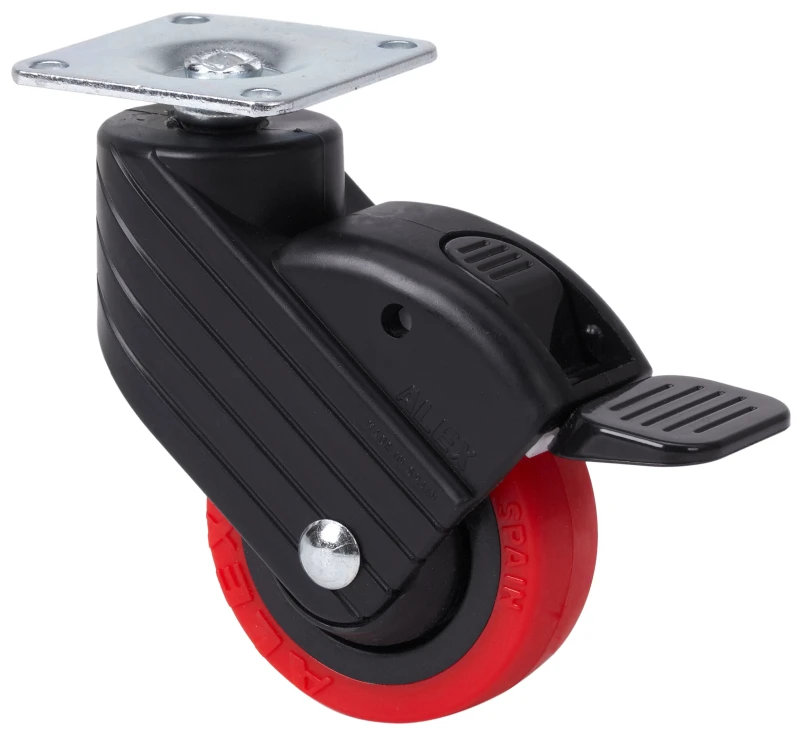

Red injected polyurethane castors, especially indicated to support high-loads up to 30 Kg.

It is used in: display stands, furniture sector, catering, commercial furniture, drips, stools, furniture, labor rooms, hospital equipment, clinical furniture, drip holders and mobile carts.

PPI: noiseless and multipurpose. Easy to move.

Components

Brackets

Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528

Wheel

Red polyurethane tyre on black polypropylene centre. 95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

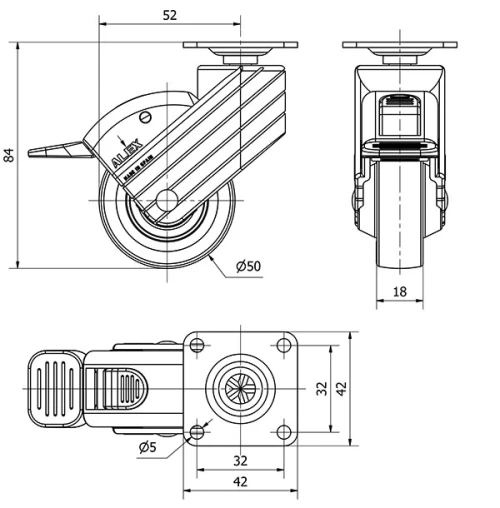

Technical Data 1-0762

EAN:

8422202107622

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Polyurethane

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

42x42

Distance between holes (mm):

32x32

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,1

Volume (cm³):

349
