HP SERIES-PPI 1-0766

Code: 1-0766

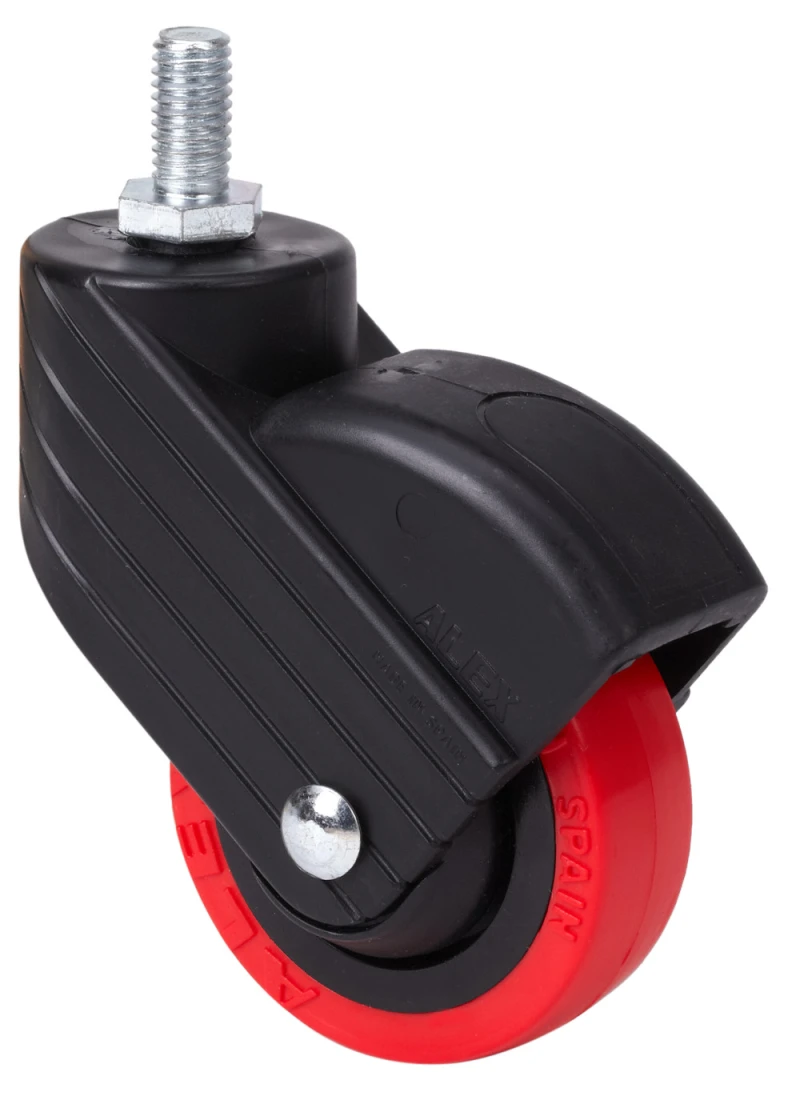

Red injected polyurethane castors, especially indicated to support high-loads up to 30 Kg.

It is used in: display stands, furniture sector, catering, commercial furniture, drips, stools, furniture, labor rooms, hospital equipment, clinical furniture, drip holders and mobile carts.

PPI: noiseless and multipurpose. Easy to move.

Components

Brackets

Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528

Wheel

Red polyurethane tyre on black polypropylene centre. 95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

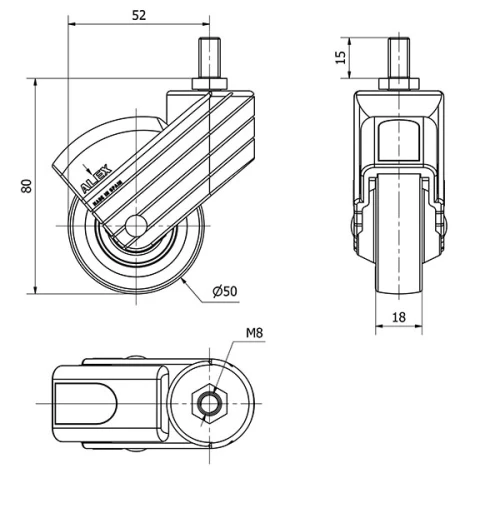

Technical Data 1-0766

EAN:

8422202107660

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Material:

Polyurethane

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Width x height of stem:

M8x15

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,08

Volume (cm³):

235

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
