Which castors do you need?

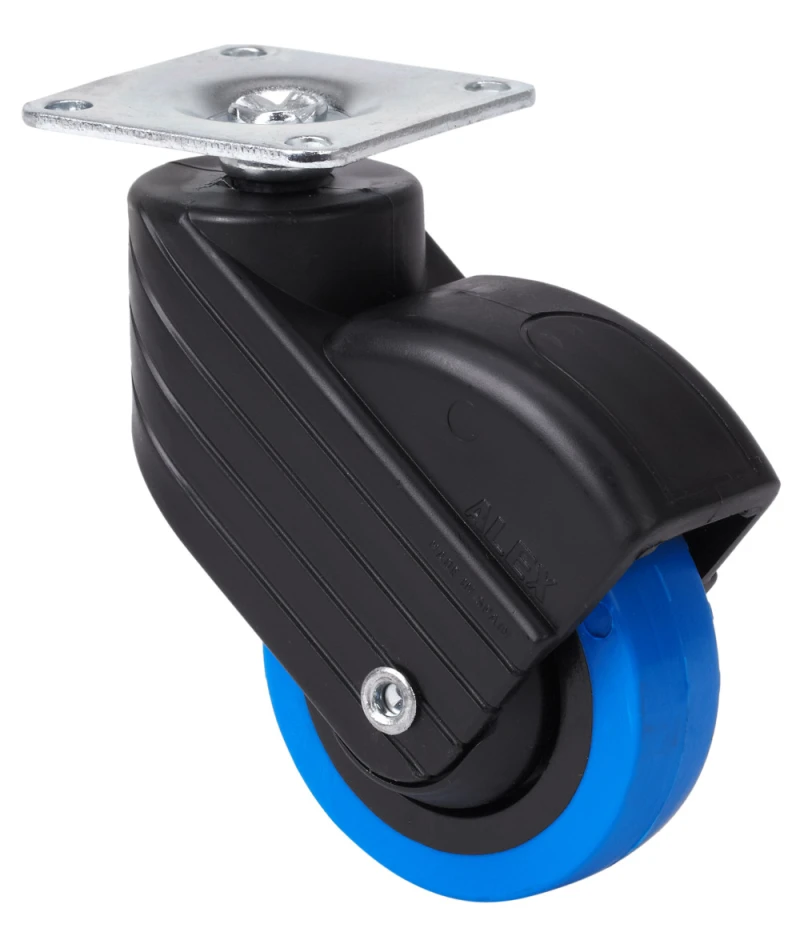

HP SERIES-PUA 1-0759
EAN 8422202107592
Blue injected polyurethane castors, especially indicated to support high-loads up to 30 Kg.
It is used in: display stands, furniture sector, catering, commercial furniture, drips, stools, furniture, labor rooms, hospital equipment, clinical furniture, drip holders and mobile carts.
PUA: noiseless, elastic. Does not leave marks on floor. Easy to move.

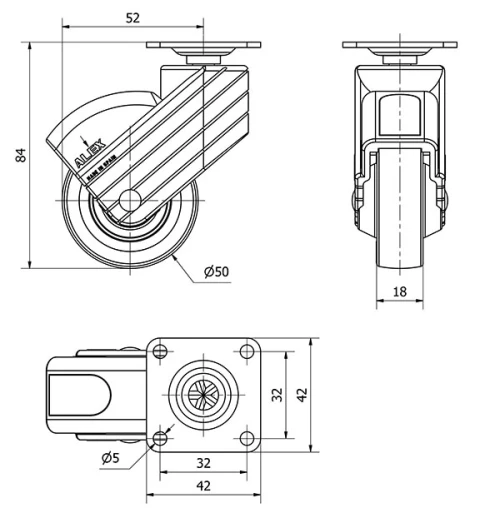

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 18 |
Plate dimensions (mm) | 42x42 |
Distance between holes (mm) | 32x32 |
Offset (mm) | 52 |
Overall height (mm) | 84 |
Load | 30 |
Unit Weight of the wheel (kg) | 0.1 |
Volume (cm3) | 258 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
