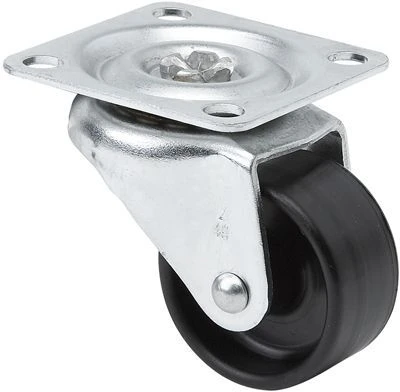

Code: 2-1575
Polypropylene castors especially indicated to support high-loads up to 60 Kg.
It is used in: display stands, furniture, clothes racks, display cabinets and displays.
BP: undeformable. Easy to move.
Components
Brackets
Made of pressed steel castor up to 2 mm.Finish: Zinc-plated.Single ball bearing swivel head.Manufactured to European standards EN 12528.
Wheel
White polypropylene wheel
Temperature range: -20º ÷ +60º
Rolling Resistence
Very Good
Noise during the march
Reasonable
Floor Protection
Reasonable

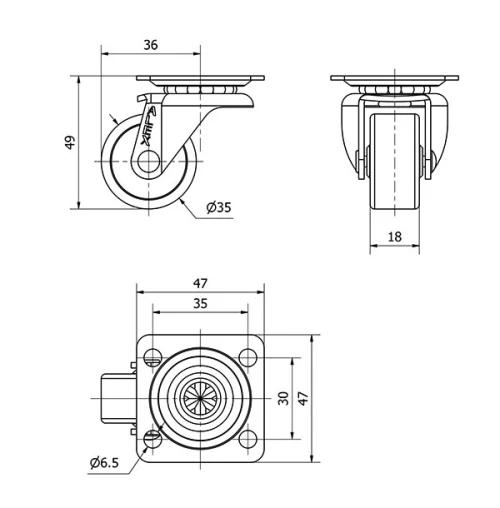

Technical Data 2-1575
EAN:
8422202215754
Housing Type:
Swivel
Fitting Type:
Plate
Braking System:
Without Brake
Material:
Plastic Polypropylene
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
65º SHORE D
Bearing:
Plain
Diameter (mm):
35
Width of tyre (mm):
18
Plate dimensions (mm):
47x47
Distance between holes (mm):
35x30
Plate hole diameter (mm):
6
Offset (mm):
36
Overall height (mm):
49
Load:
25
Unit Weight of the wheel (kg):
0,089
Volume (cm3):
137
