Z SERIES-White BP 2-0046
EAN 8422202200460
Polypropylene castors especially indicated to support high-loads up to 60 Kg.
It is used in: display stands, furniture, clothes racks, display cabinets and displays.
BP: undeformable. Easy to move.

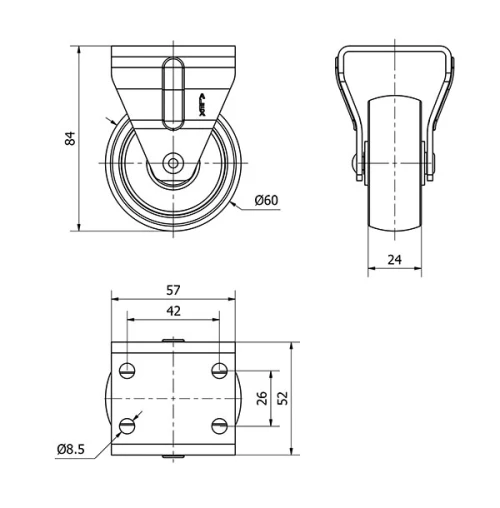

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Plastic Polypropylene |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 24 |
Plate dimensions (mm) | 52x57 |
Distance between holes (mm) | 42x26 |
Plate hole diameter (mm) | 6 |
Overall height (mm) | 84 |
Load | 60 |
Unit Weight of the wheel (kg) | 0.203 |
Volume (cm3) | 262 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel castor up to 2 mm.Finish: Zinc-plated.Single ball bearing swivel head.Manufactured to European standards EN 12528.
Wheel
White polypropylene wheel
Temperature range: -20º ÷ +60º
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
