Z SERIES-PGI 2-1576

See comparative

Code: 2-1576

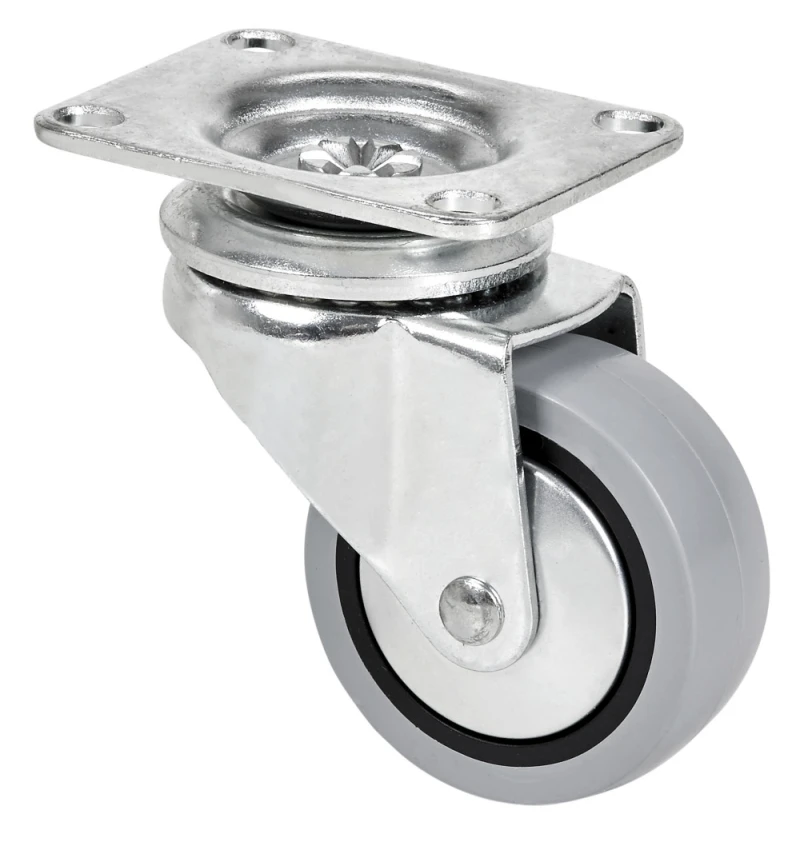

Grey injected rubber castors especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, clothes racks, display cabinets, shelves and catering carts.

PGI: does not scratch or leave marks on floor. Noiseless.

Components

Brackets

Made of pressed steel castor up to 2 mm.Finish: Zinc-plated.Single ball bearing swivel head.Manufactured to European standards EN 12528.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

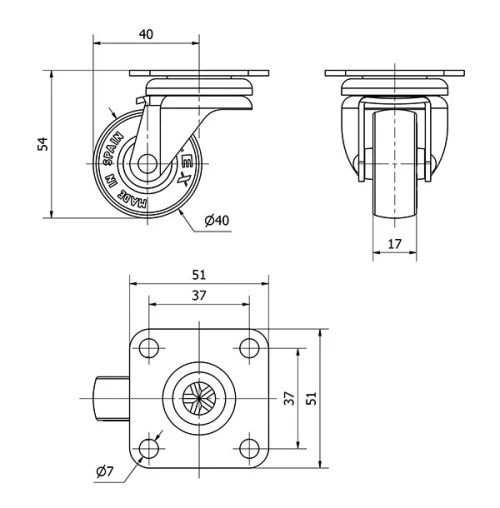

Technical Data 2-1576

EAN:

8422202215761

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

51x51

Distance between holes (mm):

37x37

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,14

Volume (cm³):

180
