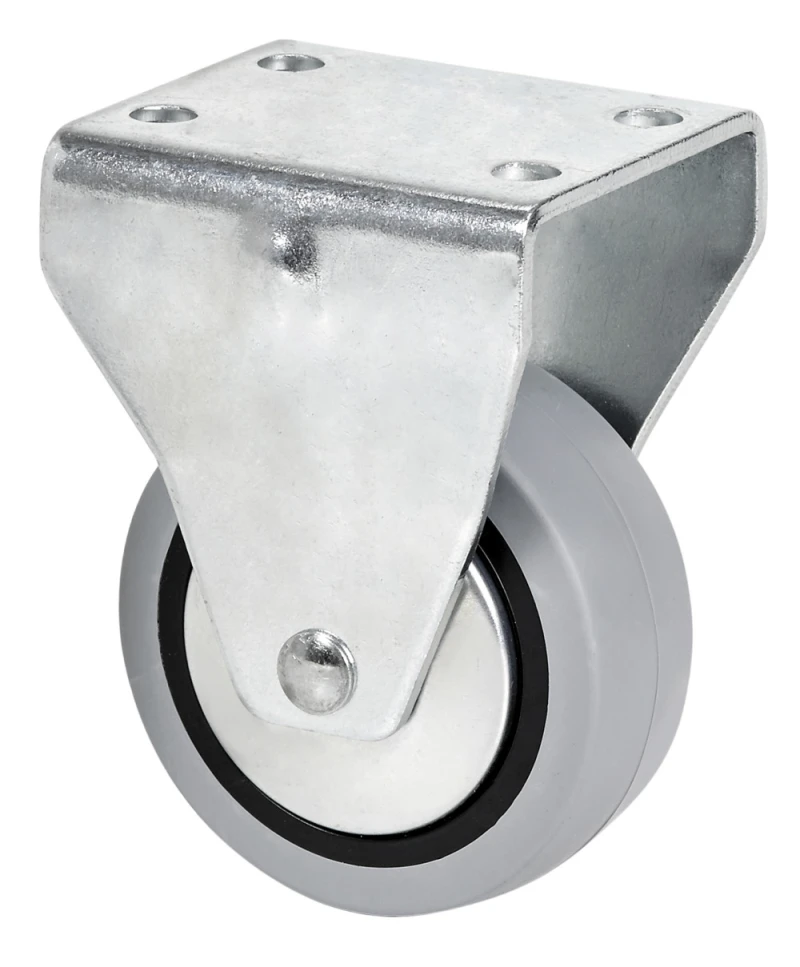

Z SERIES-PGI 2-1035
EAN 8422202210353
Grey injected rubber castors especially indicated to support high-loads up to 40 Kg.
It is used in: display stands, furniture, clothes racks, display cabinets, shelves and catering carts.
PGI: does not scratch or leave marks on floor. Noiseless.

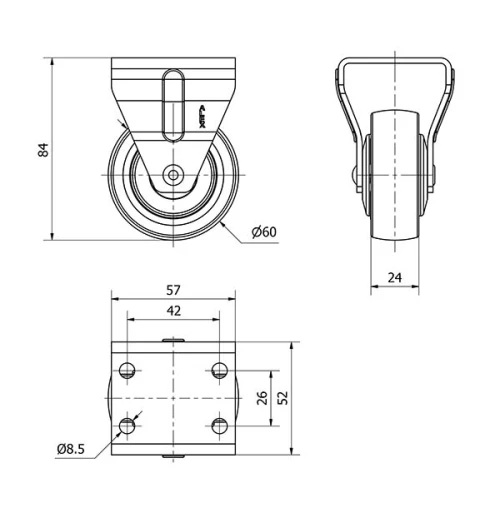

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 24 |
Plate dimensions (mm) | 52x57 |
Distance between holes (mm) | 42x26 |
Plate hole diameter (mm) | 6 |
Overall height (mm) | 84 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.22 |
Volume (cm3) | 262 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel castor up to 2 mm.Finish: Zinc-plated.Single ball bearing swivel head.Manufactured to European standards EN 12528.
Wheel
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
