RETRACTABLE SERIES 3-0911

Code: 3-0911

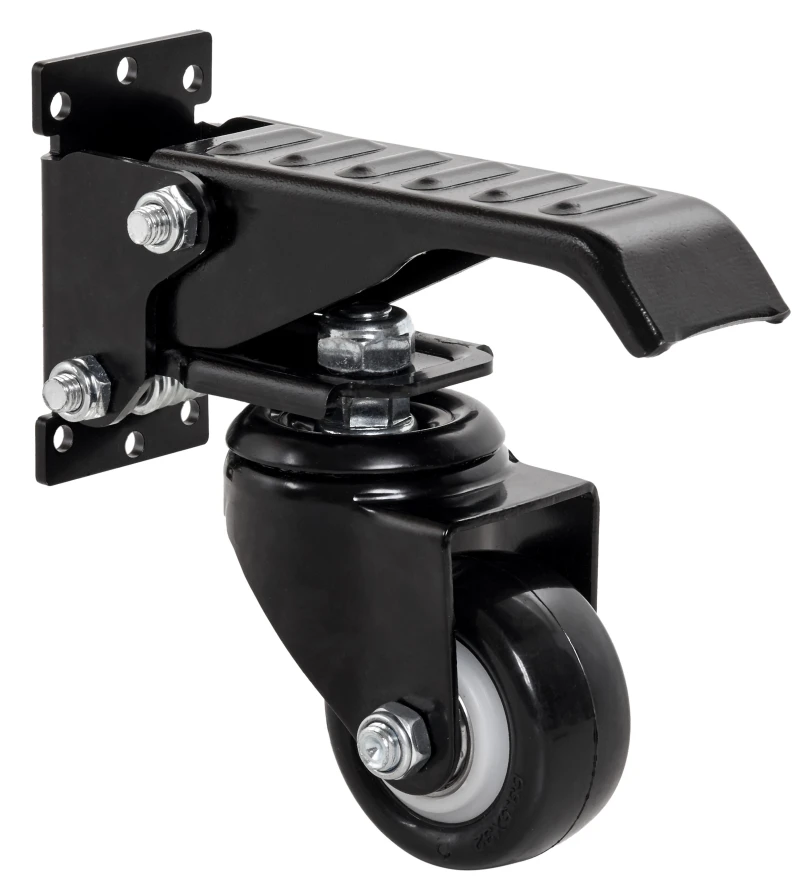

Rlack polyurethane castors designed for easy installation. They feature a black steel housing with a non-slip pedal and an adjustable lifting height of 1.9 cm and are recommended for loads of up to 65 kg per castor.

Suitable for workbenches, commercial furniture, and hospitality applications.

The polyurethane tread does not scratch or mark floors and is suitable for all types of surfaces, ensuring smooth and quiet movement.

Supplied in packs of 4 units. Please contact us for further information.

Components

Brackets

Manufactured from 2.5 mm thick steel and equipped with a non-slip pedal and a lifting height of 1.9 cm, our retractable polyurethane castor features a 63 mm diameter wheel and a 360° swivel mechanism. Ideal for all types of surfaces.

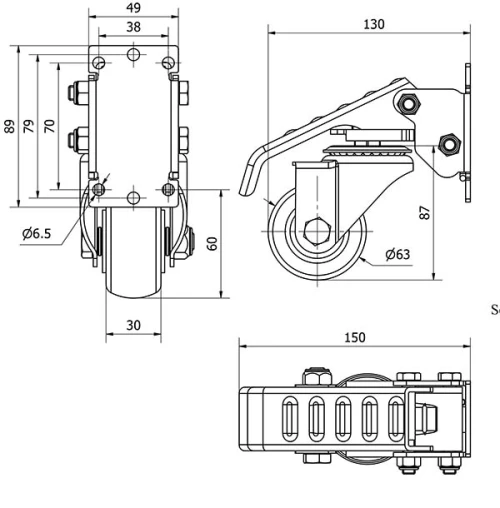

Technical Data 3-0911

EAN:

8422202309118

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Cast Iron

Hardness of tread:

95º SHORE A

Bearing:

Ball

Color:

Black

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

49x89

Distance between holes (mm):

38x79x80

Plate hole diameter (mm):

6,5

Offset (mm):

130

Overall height (mm):

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
