DKG SERIES-Black DKG 4-1322

See comparative

Code: 4-1322

Black castors DKG SERIE especially indicated to support high-loads up to 120 Kg.

It is used in: display stands, furniture, beauty and hairdresser's equipment, office chairs, stools, clothes racks, photocopiers, cabinetmaker's, hospital equipment, clinical furniture, drip holders, drips, storage beds and waste bins.

DKG BLACK: heavy duty. Light and resistant.

Accessories Fittings for DKG series

Components

Brackets

Fittings: Swivel Plate, threaded stem. Swivel plate with brake, threaded stem with brake. Wheels: Black polyamide wheel. Wheel diameter: 80 to 120mm.

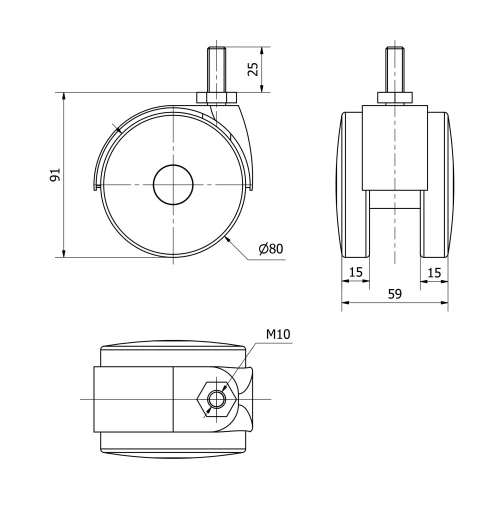

Technical Data 4-1322

EAN:

8422202413228

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Material:

Polyamide

Bearing:

Plain

Diameter (mm):

Width x height of stem:

10x25

Overall height (mm):

102

Load:

Unit Weight of the wheel (kg):

0,24

Volume (cm³):

242
