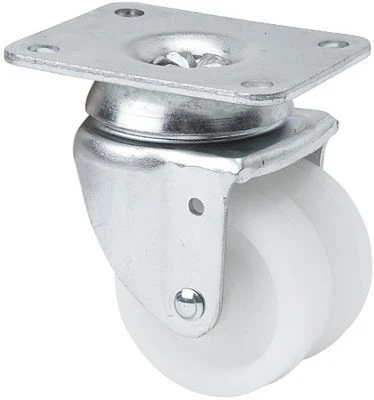

I SERIES-White BP 2-0039

See comparative

Code: 2-0039

White polypropylene castors. Especially indicated to support high-loads up to 90 Kg.

It is used in: cold stores, sales counters, book shops, offices, fashion shops, do-it-yourself shops, freezer cabinets, laundries, file cabinets and containers for document destruction.

BP WHITE: robust and undeformable. Easy to start and move.

Components

Brackets

Made of pressed steel up to 2mm. Double ball bearing swivel head. Finish: Zinc-plated. Manufactured to European standards EN 12528.

Wheel

White polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

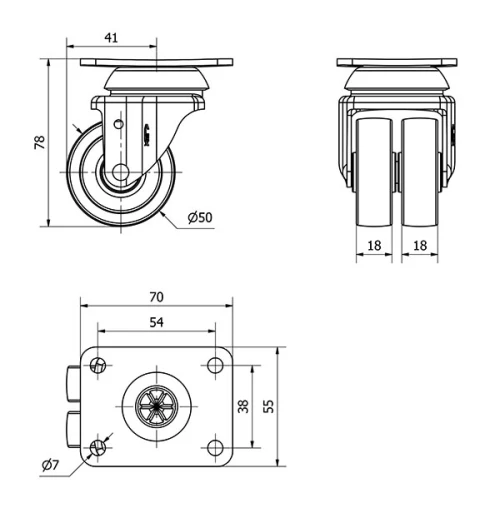

Technical Data 2-0039

EAN:

8422202200392

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Plastic Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

18x2

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,305

Volume (cm³):

326

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
