Which castors do you need?
I SERIES-White BP 1-0568
EAN 8422202105680

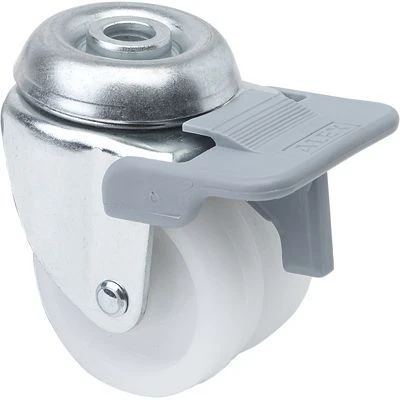

White polypropylene castors. Especially indicated to support high-loads up to 90 Kg.
It is used in: cold stores, sales counters, book shops, offices, fashion shops, do-it-yourself shops, freezer cabinets, laundries, file cabinets and containers for document destruction.
BP WHITE: robust and undeformable. Easy to start and move.

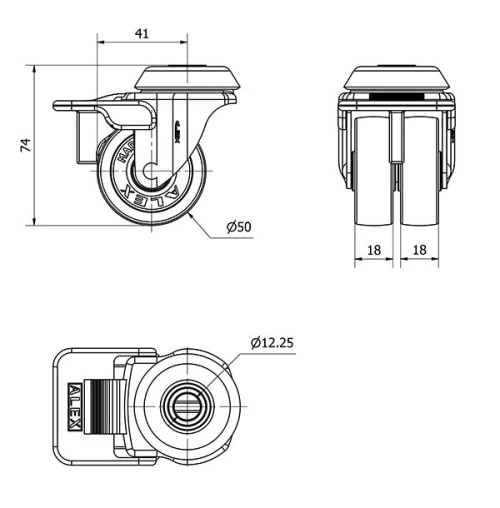

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake |
Material | Plastic Polypropylene |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 18x2 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 41 |
Overall height (mm) | 74 |
Load | 90 |
Unit Weight of the wheel (kg) | 0.23 |
Volume (cm3) | 296 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2mm. Double ball bearing swivel head. Finish: Zinc-plated. Manufactured to European standards EN 12528.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
