I SERIES-PGI 1-0397

See comparative

Code: 1-0397

Grey rubber castors. Especially indicated to support high-loads up to 70 Kg.

It is used in: cold stores, sales counters, book shops, offices, fashion shops, do-it-yourself shops, fashion shops, freezer cabinets, laundries, file cabinets, containers for document destruction and shop interiors.

PGI: robust, noiseless and does not scratch the floor.

Components

Brackets

Made of pressed steel up to 2mm. Double ball bearing swivel head. Finish: Zinc-plated. Manufactured to European standards EN 12528.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

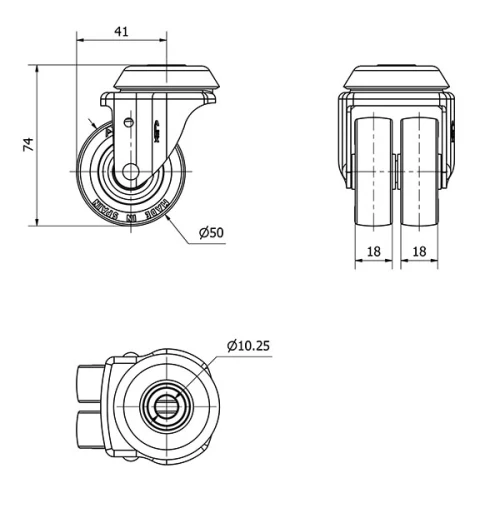

Technical Data 1-0397

EAN:

8422202103976

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

18x2

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,235

Volume (cm³):

238
