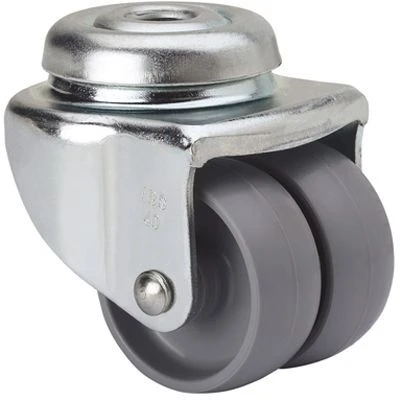

IB SERIES-BP 1-0274

Code: 1-0274

Grey polypropylene castors especially indicated to support high-loads up to 50 Kg.

It is used in: display stands, fridges, electrical appliance, furniture, vending machines, furniture, gymnastics equipment and storage beds.

BP: robust, undeformable. Easy to start and move.

Components

Brackets

Made of pressed steel castor up to 3 mm. Finish: Zinc-plated. Single ball bearing swivel head. Manufactured to European standards EN 12528.

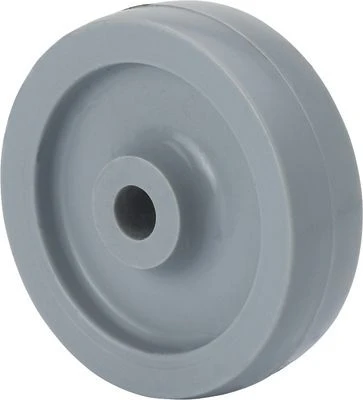

Wheel

Grey polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

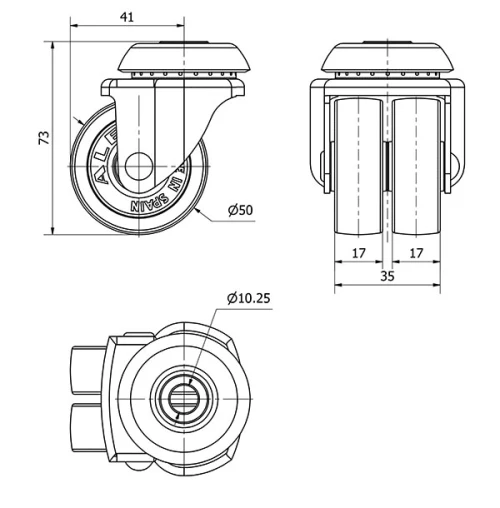

Technical Data 1-0274

EAN:

8422202102740

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Plastic Polypropylene

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

17x2

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,146

Volume (cm³):

234
