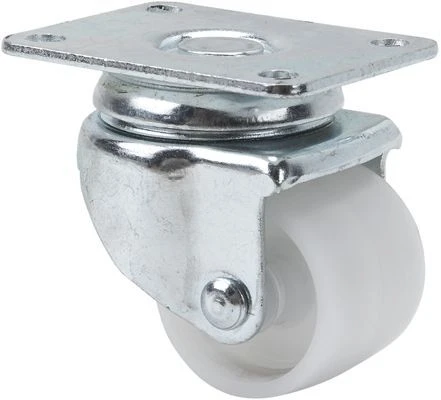

IB SERIES-KP 1-0262

Code: 1-0262

White polypropylene castors especially indicated to support high-loads up to 45 Kg.

It is used in: display stands, furniture, fridges, electrical appliance, freezers, freezer cabinets, gymnastics equipment, storage beds, carpets and rugs.

KP: light and resistant. Ideal load capacity. Indicated for floors with carpets or rugs.

Components

Brackets

Made of pressed steel castor up to 3 mm. Finish: Zinc-plated. Single ball bearing swivel head. Manufactured to European standards EN 12528.

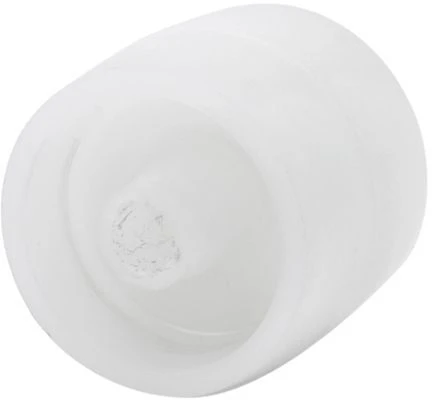

Wheel

Polypropylene roller

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

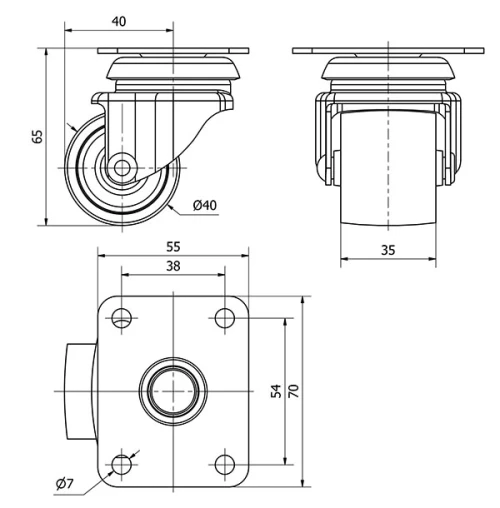

Technical Data 1-0262

EAN:

8422202102627

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polypropylene

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,28

Volume (cm³):

268

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
