FORKLIFT WHEELS

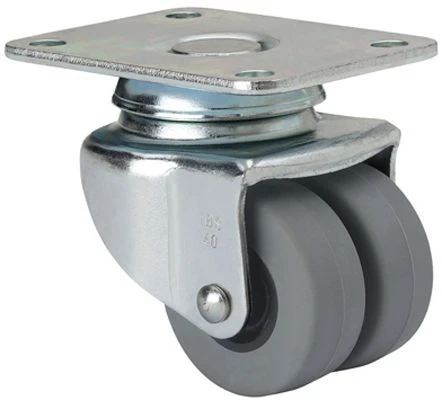

Code: 1-0265
Grey injected rubber castors especially indicated to support high-loads up to 30 Kg.
It is used in: display stands, fridges, electrical appliace, furniture and vending machines.
PGI: does not scratch or leave marks on floor. Noiseless.
Components
Brackets
Made of pressed steel castor up to 3 mm. Finish: Zinc-plated. Single ball bearing swivel head. Manufactured to European standards EN 12528.
Wheel
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
Rolling Resistence
Good
Noise during the march
Very Good
Floor Protection
Very Good

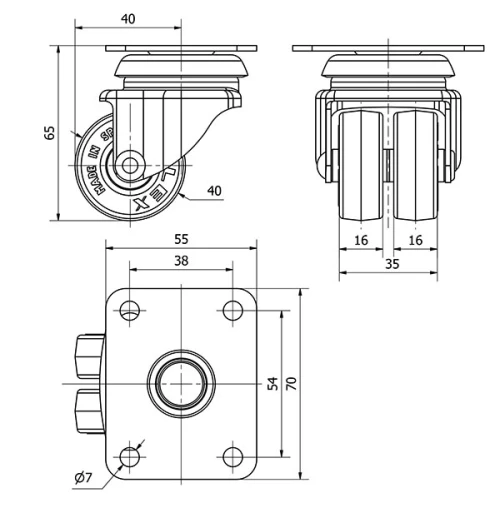

Technical Data 1-0265
EAN:
8422202102658
Housing Type:
Swivel
Fitting Type:
Plate
Braking System:
Without Brake
Material:
Rubber
Bearing:
Plain
Diameter (mm):
40
Width of tyre (mm):
16x2
Plate dimensions (mm):
70x55
Distance between holes (mm):
54x38
Plate hole diameter (mm):
6
Offset (mm):
40
Overall height (mm):
65
Load:
30
Unit Weight of the wheel (kg):
0,268
Volume (cm3):
268
