Which castors do you need?

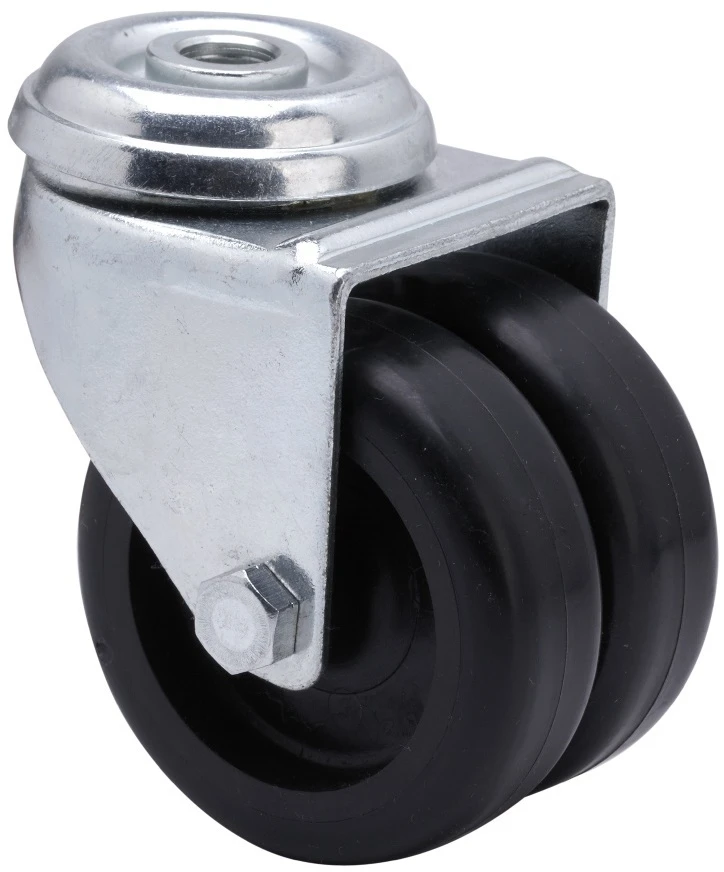

IG SERIES-Black IG 1-0651
EAN 8422202106519
Black polypropylene castors. Especially indicated to support high-loads up to 100 Kg.
Our range of black IG SERIE double castors is recommended for the the medium-load sectors.
It is used in: clinical furniture, cold stores, display cabinets, sales counters, freezing chambers, freezers and freezer cabinets.
IG BLACK: does not leave marks on floor. Easy to move with load.

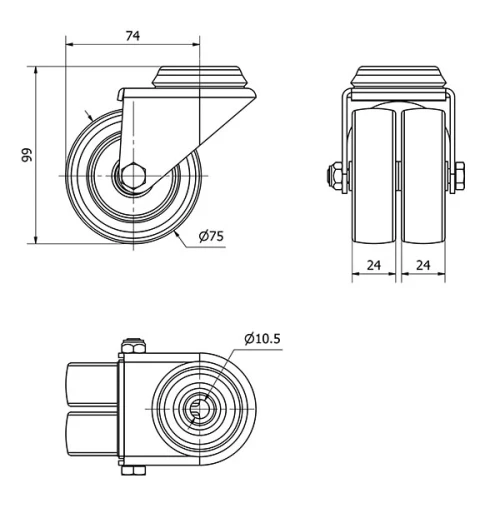

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 75 |
Width of tyre (mm) | 24x2 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 74 |
Overall height (mm) | 99 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.468 |
Volume (cm3) | 275 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2.5 mm. Double ball bearing swivel head. Finish: Zinc-plated. Manufactured to European standards EN 12528.
