M SERIES-M-MEB 2-3137

Code: 2-3137

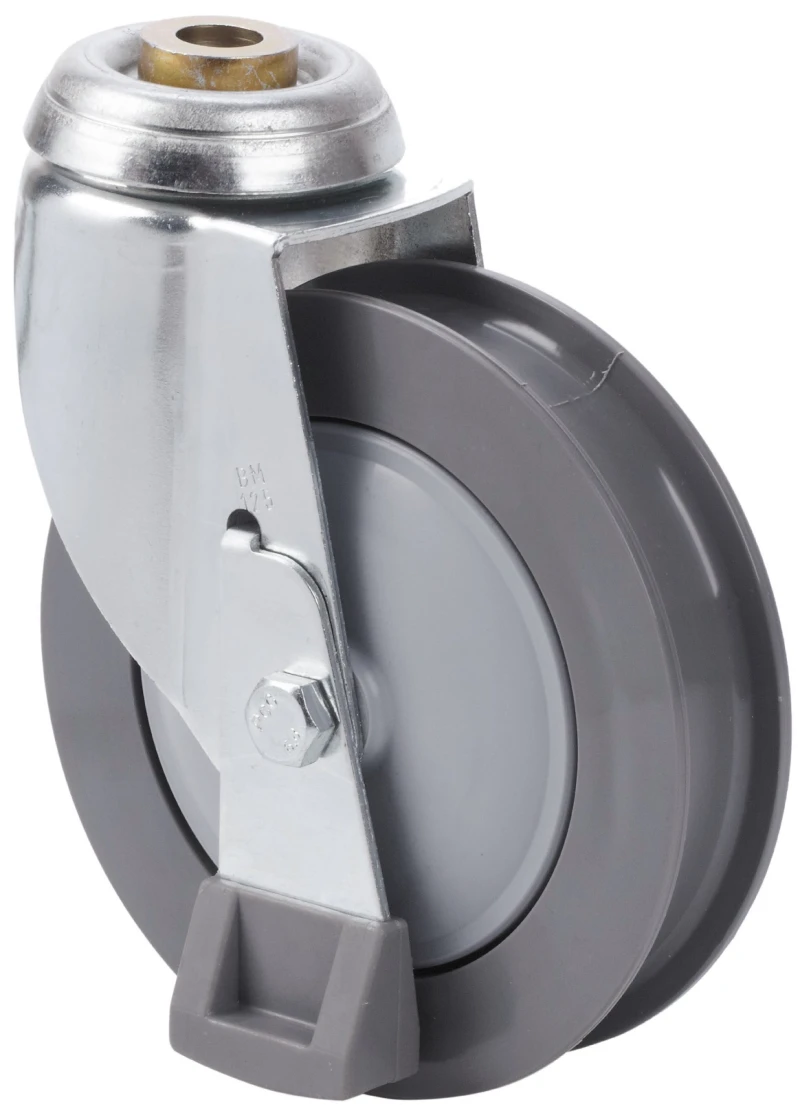

Injected polyurethane castors. Especially indicated to support high-loads up to 80 Kg.

Our range of MM-MM SERIE castors is recommended for the the medium-load sectors. It is used in: supermarket trolleys and mechanical ramps.

MM: Long useful life. Noiseless, clean and undeformable.

Components

Brackets

Made of pressed steel of 2 mm. Double ball bearing swivel head. Finish: zinc-plated. M-MEB Series for escalator ramps with integrated brake. Manufactured to European Standard EN 12530.

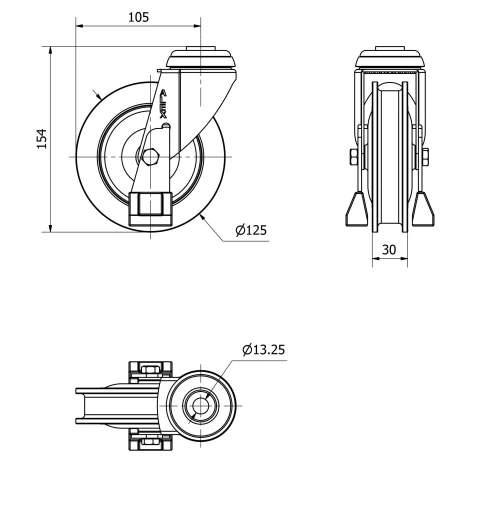

Technical Data 2-3137

EAN:

8422202231372

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polyurethane

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

154

Load:

Unit Weight of the wheel (kg):

0,72

Volume (cm³):

1256
