Which castors do you need?

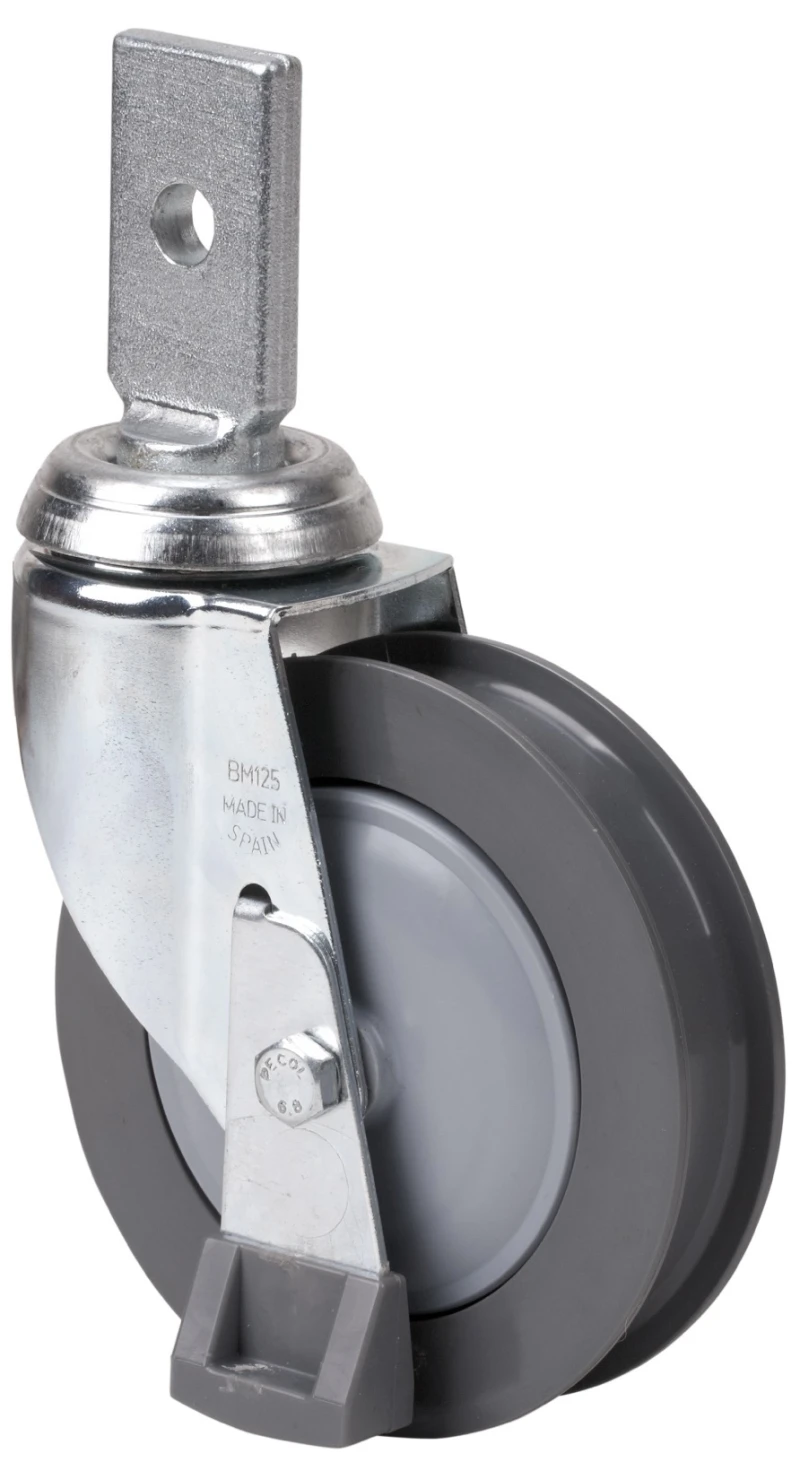

MM SERIES-MM 2-3507
EAN 8422202235073
Injected polyurethane castors. Especially indicated to support high-loads up to 80 Kg.
Our range of MM-MM SERIE castors is recommended for the the medium-load sectors. It is used in: supermarket trolleys and mechanical ramps.
MM: Long useful life. Noiseless, clean and undeformable.
Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Expander |
Braking System | Without Brake |
Material | Polyurethane |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 28 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 105 |
Overall height (mm) | 154 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.88 |
Volume (cm3) | 1256 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel of 2 mm.Double ball bearing swivel head.Finish: zinc-plated.MM Series for escalator ramps with integrated brake. Manufactured to European Standard EN 12530.
