Which castors do you need?

M SERIES-PGAIB 2-3503

See comparative

Code: 2-3503

Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.

Our range of M-PGAIB SERIE castors is recommended for the the medium-load sectors.

It is used in: supermarkets, superstores, carts for heavy duty works and shopping malls.

PGAIB: noiseless and absorbs vibrations. Does not leave marks on floor. Easy to move.

Components

Brackets

Made of pressed steel of 2 mm. Double ball bearing swivel head. Finish: zinc-plated. Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

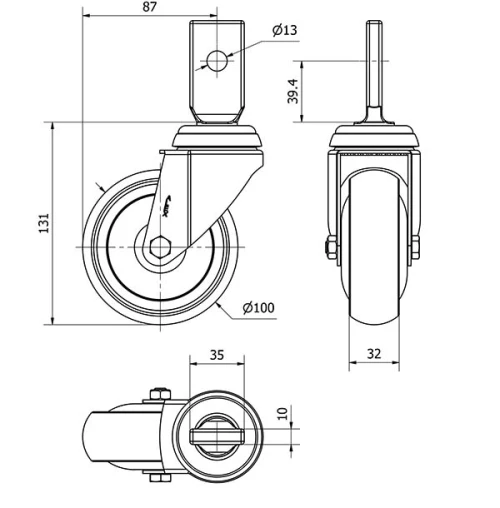

Technical Data 2-3503

EAN:

8422202235035

Housing Type:

Swivel

Fitting Type:

Expander

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

32

Plate hole diameter (mm):

12

Offset (mm):

87

Overall height (mm):

131

Load:

85

Unit Weight of the wheel (kg):

0,77

Volume (cm³):

920

Technical Data 2-3503
