Which castors do you need?

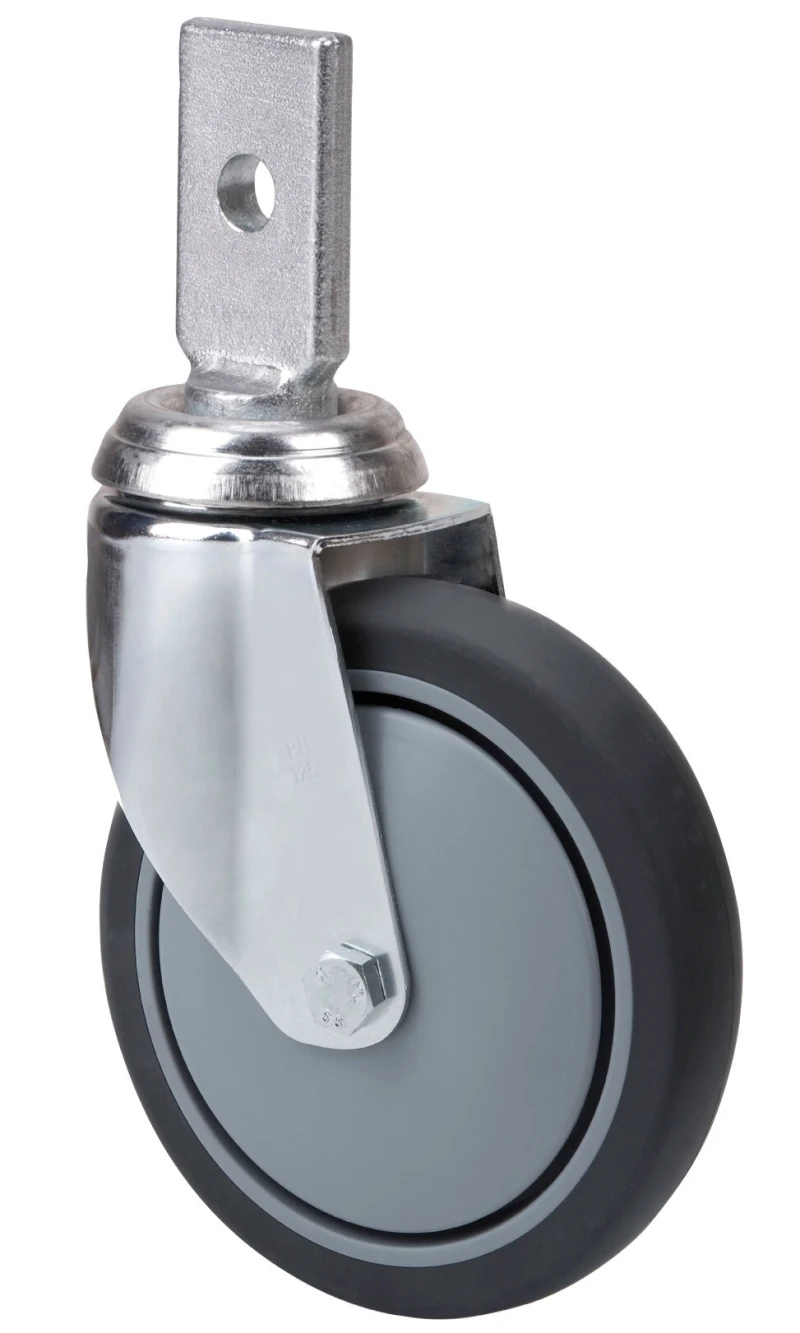

M SERIES-PGAIB 2-3504
EAN 8422202235042
Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.
Our range of M-PGAIB SERIE castors is recommended for the the medium-load sectors.
It is used in: supermarkets, superstores, carts for heavy duty works and shopping malls.
PGAIB: noiseless and absorbs vibrations. Does not leave marks on floor. Easy to move.

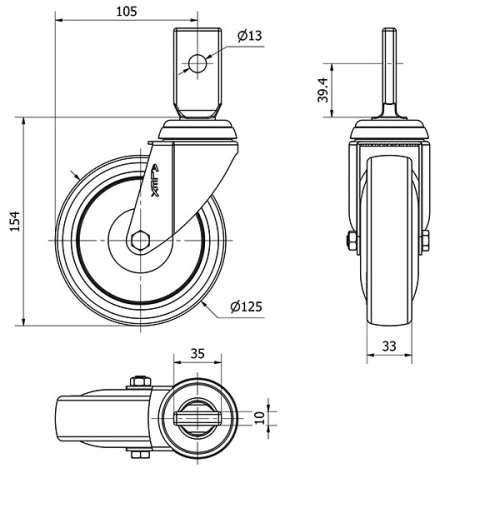

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Expander |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 33 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 105 |
Overall height (mm) | 154 |
Load | 90 |
Unit Weight of the wheel (kg) | 0.815 |
Volume (cm3) | 1256 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel of 2 mm. Double ball bearing swivel head. Finish: zinc-plated. Manufactured to European standards EN 12530.
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
