M SERIES-PU 2-3505
EAN 8422202235059
Injected polyurethane castors. Especially indicated to support high-loads up to 90 Kg.
Our range of M-PU SERIE castors is recommended for the the medium-load sectors.
It is used in: supermarkets, superstores, carts for heavy duty works and shopping malls.
PU: long useful life. Noiseless, clean and undeformable.

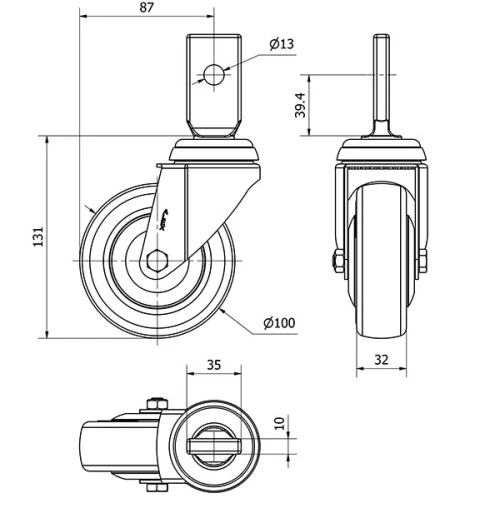

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Expander |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 55º-60º SHORE D |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 87 |
Overall height (mm) | 131 |
Load | 85 |
Unit Weight of the wheel (kg) | 0.83 |
Volume (cm3) | 920 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel of 2 mm. Double ball bearing swivel head. Finish: zinc-plated. Manufactured to European standards EN 12530.
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
